    Corrugated Flexo Printing Machine / Printing Slotting Die Cutting Machine

    Ask Lasest Price
    Brand Name : ZHAOLI
    Model Number : GYK
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20 set per month
    Delivery Time : 60 days after receive deposit
    • Product Details
    • Company Profile

    Corrugated Flexo Printing Machine / Printing Slotting Die Cutting Machine

    Automatic Corrugated Carton Water Ink Printer Slotter Machine


    Features:

    1 The electric appliances of the whole machine adopt the product of SCHNEIDER made in FRANCE (optional).
    2 Straight gear drive.The gears are after high frequency quenching and grinding
    3 All the rollers are plated with chromium to encrease their hardness.
    4 Spray circulated oil lubrication.
    5 Return to zero and adjust printing plate automatically.
    6 Module-designed. Multicolor printing sections can be combined as your requests.
    7 The side baffle of feeder and slotter are all adjusted electrically.
    8 PLC, frequency-variable controller are adopt,accurate and reliable.


    Main driving gears:

    a Material: 20CrMnTi alloy steel, which carburizing and quenching treated and grind.

    b 6 class precision, run smoothly. Hardness: HRC58-62, last long service life. It can work in good condition nearly in 10 years and long time good printing tolerance.


    Technology parameter:

    ParametersUnitSpecification
    GYK910X2000GYK910X2200GYK1227X2200GYK1227X2400
    inner widthmm2200240024002600
    max speedpcs/min200200200200
    max feeding sizemm910X2200910X24001270X24001270X2600
    min size of feedingmm280X600280X600350X700350X700
    feeding breakmm1100X22001100X24001600X24001600X2600
    max printing areamm910X2000910X22001227X22001227x2400
    precision of printingmm±0.5±0.5±0.5±0.5
    thickness of standard platemm7.27.27.27.2
    thickness of board printedmm2-112-112-112-11
    min slot spacemm190X50X190X50190X50X190X50190X50X190X50190X50X190X50
    max depth of slotmm210210300300
    radial adjustdegree360°360°360°360°
    axial adjustmm±10±10±10±10
    gross powerkw18.518.52222
    outer sizemm6500X3430X20006500X3430X20007500X4000X24007500X4000X2400
    total weight of machineabout kg18000180001900019000

    Package:

    plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.


    The normal package is plastic film(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


    Company introduction:

    Over these years, the company adhering to the "Quality is the first, Credibility is the foundation" as business purposes, Fulfilling customers` needs is always our only goal, To provide customers with excellent quality, technical expertise, excellent performance of the products is our working direction. Our company is willing to sincerely cooperate with domestic and abroad friends and strive to develop, share our achievements and work together for the beautiful future of carton package!

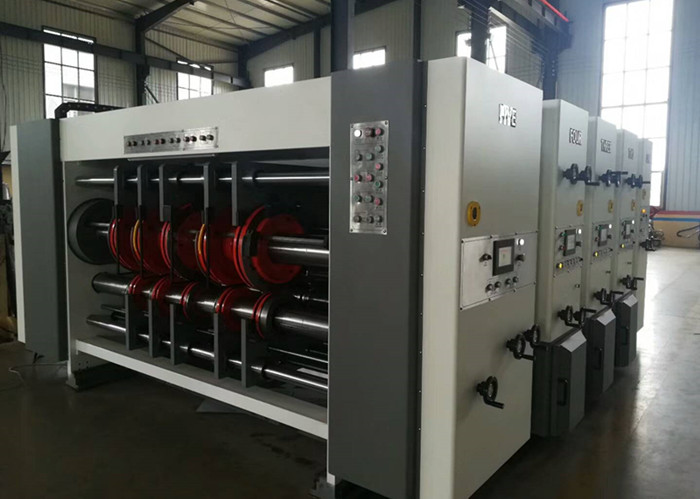

    Picture:

    Quality Corrugated Flexo Printing Machine / Printing Slotting Die Cutting Machine for sale
