Brand Name : | ZHAOLI |
Model Number : | Type2200 |
Certification : | CE |
Price : | discuss in private |
Payment Terms : | Western Union,L/C, D/A |
Supply Ability : | 50Set per month |
Delivery Time : | 50days |

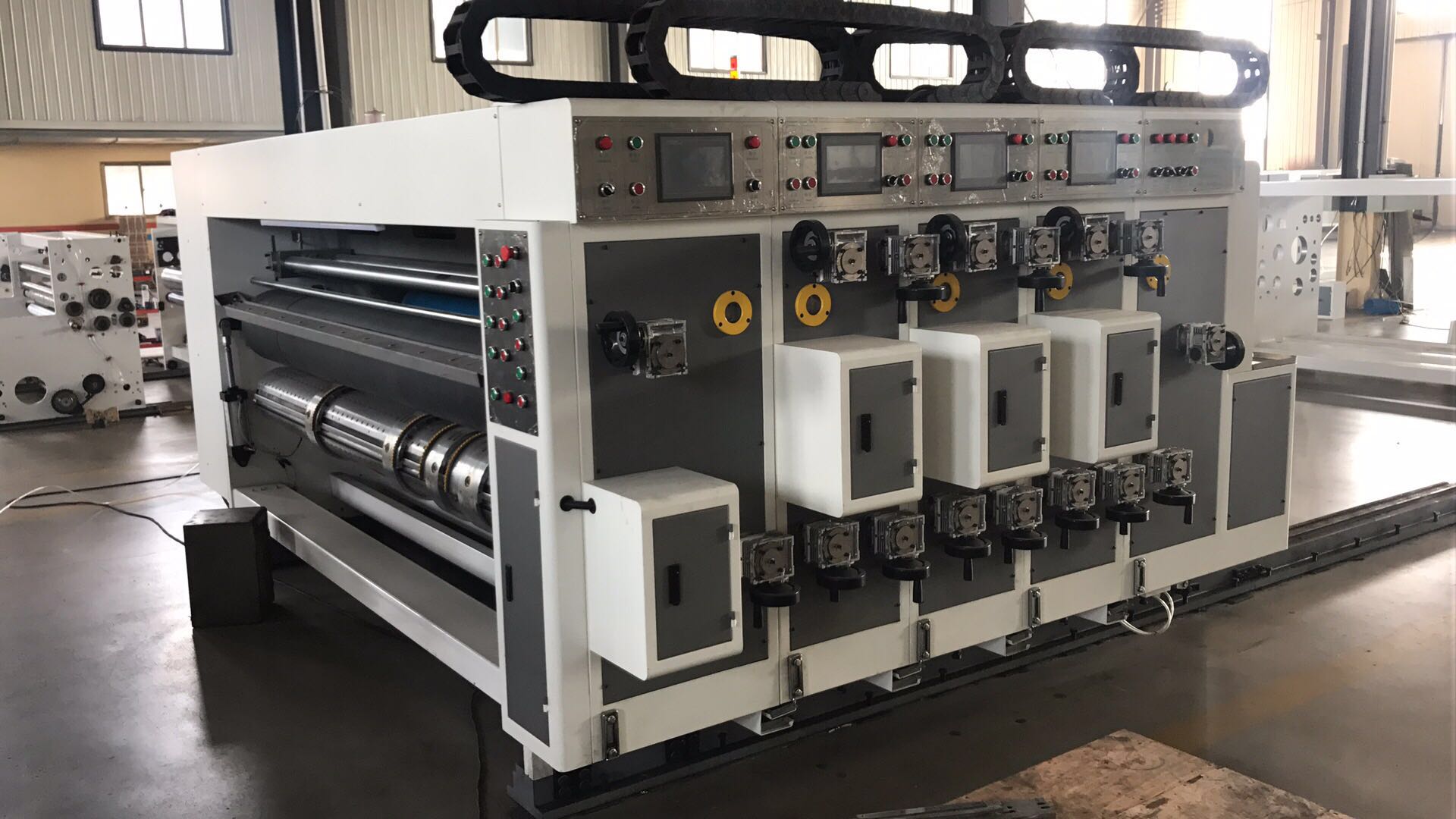

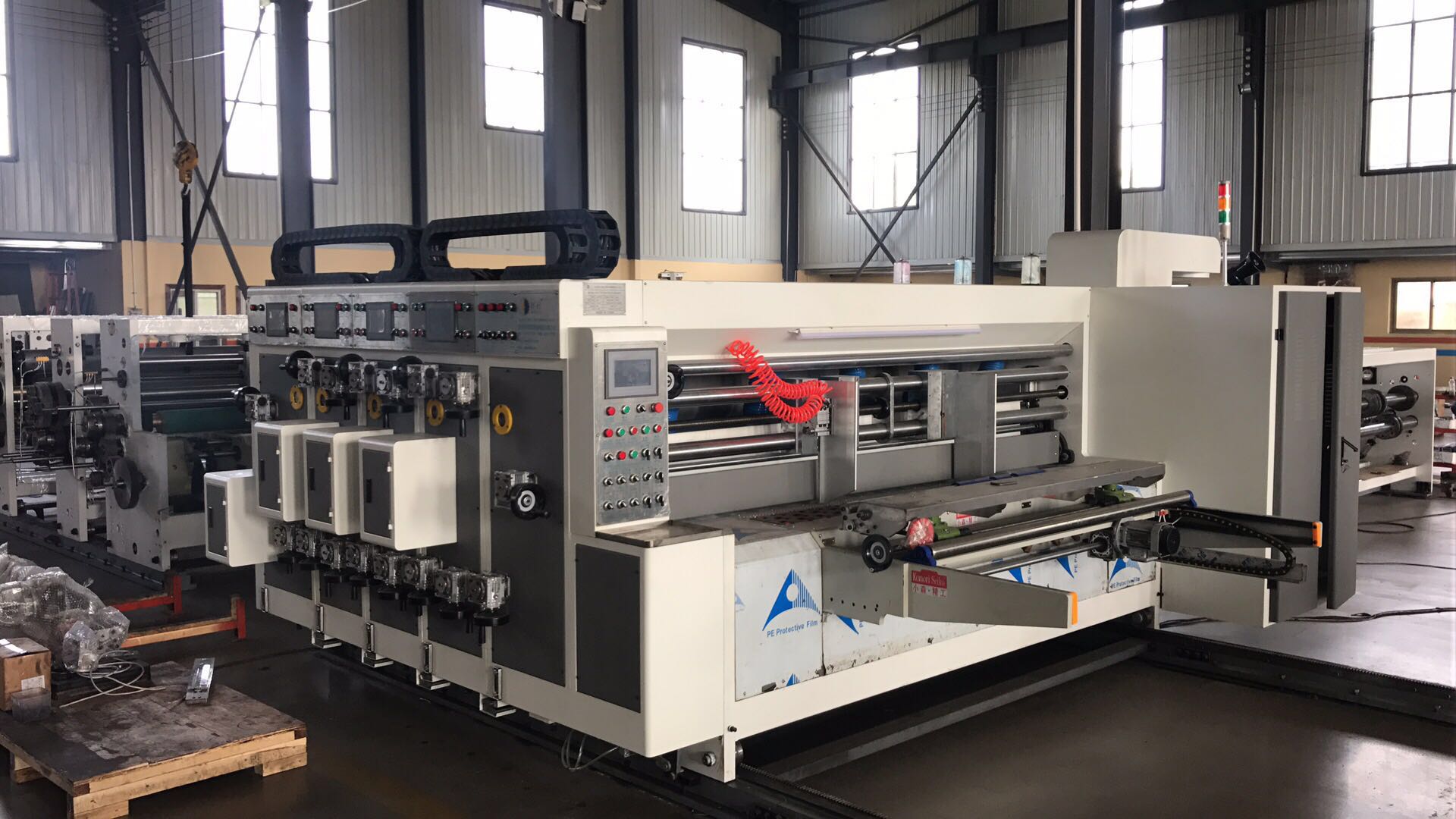

Small Type 2000 Flexo Printing Slotter Machine For Make Carton Box
Specification
Model | 2200type(width of door 2600mm) |
printing speed | 150-200pcs/min |
Max feeding size (L * W) | 2300mmX900mm |
Width of printing roller | 2200mm |
Min feeding size (L * W) | 600mmX230mm |
Min slotting | 230mmX60mmX230mmX60mm |
The machine adopts gear thickness of 50 mm chrome steel forging a
40 with, gear processing is completed in the high frequency
quenching hardness can reach 45-48 HRC.
The machine is equipped with auxiliary vacuum adsorption front
paper feeding system, feeding way has a one-time corrugated board
printing, slitting, die-cutting, etc.
Computer control department USES multiple sets of communication
type adjustment, the host computer adopts PLC control system, can
be individually controlled paper, printing, slitting, die-cutting,
print roller device equipped with hangs Taiwan belongs to zero, and
is equipped with foot switch anyway.
2. The slot of preloading double line pressing wheel, the machine
slot depth and the 360 ° phase electric for computer, slotting
cutter and line pressing wheel preloading round about moving to
dynamic adjustment screw electric point, with the scale reading.
Slotting phase adjustment to the planetary gear structure, the
whole machine transmission shaft paper receiving wheelbase 210 mm
can achieve most minimum 230 mm cardboard.
3. Note the optional: die cutting department options free version
of the die-cutting
![]() |
