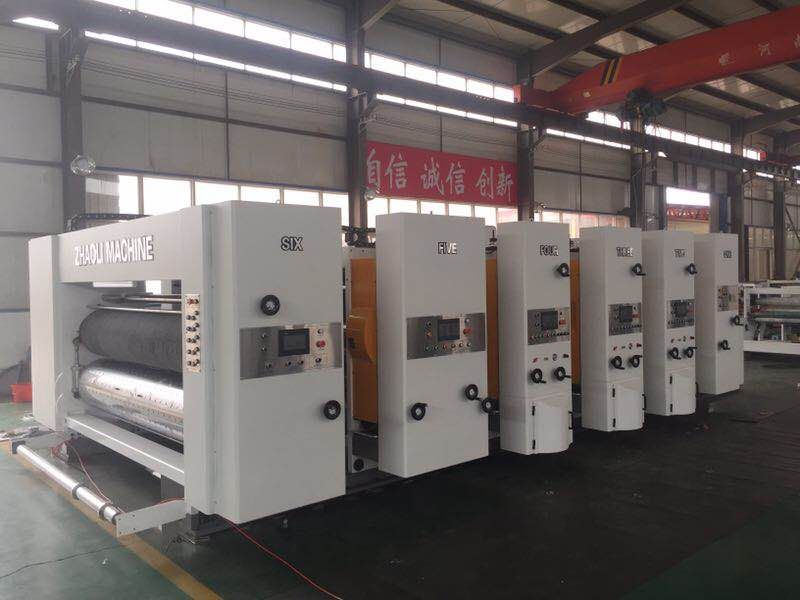

1200x2400printing machine slotting and die cutting machine for
making carton box
Feeding-unit:
1 Lead edge feeding
2 Vacuum absorption assist paper feeding ensure stable high-speed
operation. The air volume can be adjusted according to the camber
of the paperboard.
3 PLC and color touch screen. Lower failure and higher efficiency,
and is easy to learn and operate.
4. The main machine and fan motor applies transducer speed
regulation,stable and energy saving.
Printing unit:
1 The printing roller and trace pressing roller: good quality SSTU,
grinded and hard chrome-plated.
2 Hang printing plate system, it is easy to install and change
printing plate. Foot switch operate.
Slotting unit
1. The function of the double shaft slotting unit(Adopt units). Big
size carton box or kicking paperboard slitting can save loading
knife time.
2. Slotting phase and the height carton box adjusting, computer and
the electrical number can be controlled.
3. Line wheel, slotting knife a move transversely adjustment,
computer and electric control.
4. Creasing gap adjusting, computers and digital electronic control
(choose configuration).
Die-cutting unit
The rubber roller adopt mechanical control the position move left
and right. The movement distance is 40mm.
Main Parameters:
| parameter | unit | GYK910×1800 | GYK1200×2400 |
| inner width | mm | 2000 | 2600 |
| max speed | sheets/min | 160 | 160 |
| max feeding size | mm | 910×1800 | 1200×2400 |
| min size of feeding | mm | 280×600 | 350×700 |
| feeding break | mm | 1100×1800 | 1600×2400 |
| max printing area | mm | 840×1640 | 1200×2240 |
| precision of printing | mm | ±0.75 | ±0.75 |
| thickness of standard plate | mm | 7.2 | 7.2 |
| thickness of board printed | mm | 3-9 | 3-9 |
| min slot space | mm | 190×50×190×50 | 190×50×190×50 |
| max depth of slot | mm | 210 | 300 |
| radial adjust | degree | 360° | 360° |
| axial adjust | mm | ±10 | ±10 |
| gross power | kw | 18.5 | 22 |
| outer size | mm | 6500×3230×2000 | 7500×4500×2400 |
| total weight of machine | about kg | 16000 | 20000 |
