Fully Automatic Flexo Printing Slotting Die Cutting Machine /
Carton Board Multi Colors Printing Machine
The Function and Characteristics :
1 Having printing and slotting memory, auto zero adjustment and
auto reset.
2 Designed According to the high request and the reliable
function,the operation of the machine is humanization,can
accomplish the setting,revision, implement, replacing and memories
function in a shot time,and display with a exact data.
3 All the drive rollers adopted high quality alloy steel
materials,hard chromium plating and the surface be treated by
lapping finish.
4 The drive gears adopt high quality alloy steel,after heat
treatment and lapping finish.
5 The gears adopt shower type circular lubricating
6 The main drive roller adopt keyless connect,decrease the
connection gap, guarantee the printing presicion.
7 Lubricate oil automatic balance device,keep the equal oil level
equal in each unit.
8 All the electrical and electronic components and parts,PLC,
Computer ,Inverter are Siemens Brand from Germany.
9 Customer can chose use steel anilox roller or ceramic roller,the
lines of the anilox roller ac so can be chosed accord the customer
use
10 The side baffle plate of the feeding department and slotting
department are adjust by electrical
Main Characteristics:
- Highest configuration
- Order storage function
- Electrically adjust all the parameters in touching screen , full
computer control
Units:
1 * leading edge vacuum adsorption feeder
3 * printing units (3 colors )
1 * slotting unit (computer control)
1 * die cutting unit
The Technological Parameter
Automatic printing slotting die cutting machine
| Item | 2000 model type |
| Wallboard medial width | 50 mm |
| The diameter of the anilox | 405 mm |
| Max feeding paperboard size | 1200 mm*2200 mm |
| Max effective printing size | 1200 mm*2000 mm |
| Min process paperboard size | 350 mm*600 mm |
| Thickness of the printing plank | 7.2 mm |
| Max speed | 150 pieces/min |
| Economical speed | 120-130 pieces/min |
| Precision of the printing | ±0.75 mm |
| Precision of the slotting | ±1 mm |
| Max depth of slotting | 300 mm |
| Min grooving space | 300mm*100mm*300mm*100mm |
| Printing rolling axle circle-oriented regulating | 360 degree revolving |
| Printing rolling axle-oriented regulating | +/-10mm |
| Power | 22 kw |
| Power supply | as customer’s wish |

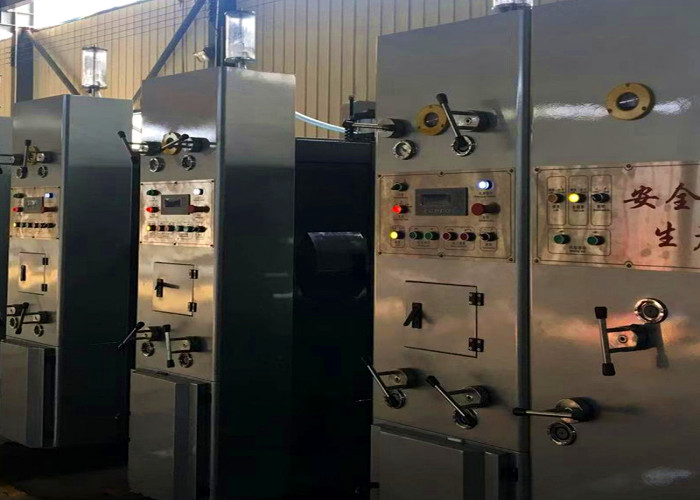

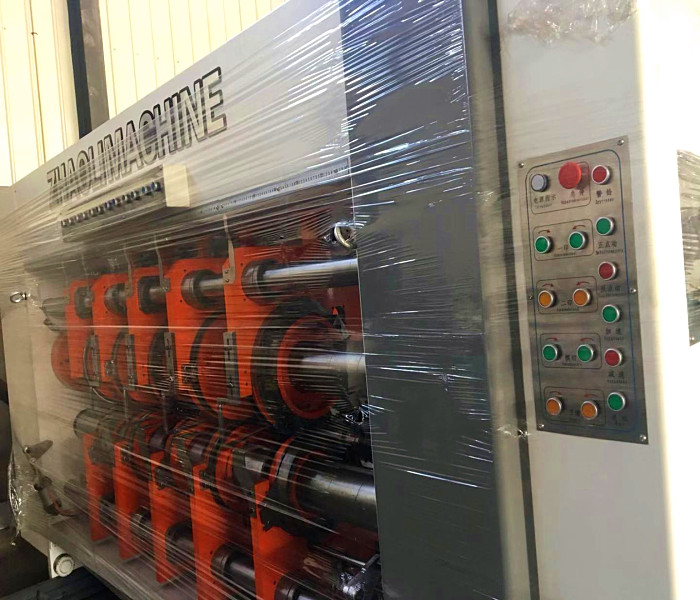

The Machine Real Photos
Our Company Service
1 Training how to instal the machine, training how to use the
machine.
2 Engineers available to service machinery overseas.
3 12 months warranty
4 24 hours online service
5 Providing free quick-wear parts
6 Product certificated by CE
