    Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine

    Ask Lasest Price
    Brand Name : ZhaoLI
    Model Number : 2600 * 1200 mm
    Certification : CE
    Price : USD 55000 Per Set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3 Set Per Month
    Delivery Time : 50- 70 work days
    • Product Details
    • Company Profile

    Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine

    Speed 150 Pcs / Min Automatic Feeding Flexo Carton Printer Slotter Die Cutter Packing Machine

    The machine introduction and function

    1 The whole machine adpots famous electricity appliances , france Shediner .


    2 The machine gears adopts 40GR by high frequency hardening , which can achieve six level of accuacty.


    3 In order to increas the hardness of the shaft , all the shaft adopt high frequency quenching and polishing - gear .


    4 The machine PLC touch screen adopt international brand .


    5 Automatically changes return zero and correct the plate position .


    6 The side baffle plate of feeding department and the grooving department are adjust by PLC electrically .


    The machine main paremeter

    Item2600 * 1200 model type
    Wallboard medial width50 mm
    The diameter of the anilox405 mm
    Max feeding paperboard size2600 mm*1200 mm
    Max effective printing size240 mm*1200 mm
    Min process paperboard size280 mm*600 mm
    Thickness of the printing plank7.2 mm
    Max speed150 pieces/min
    Economical speed80-100 pieces/min
    Precision of the printing±0.75 mm
    Precision of the slotting±1 mm
    Max depth of slotting300 mm
    Min grooving space300mm*100mm*300mm*100mm
    Printing rolling axle circle-oriented regulating360 degree revolving
    Printing rolling axle-oriented regulating+/-10mm
    Power22 kw
    Power supplyas customer’s wish

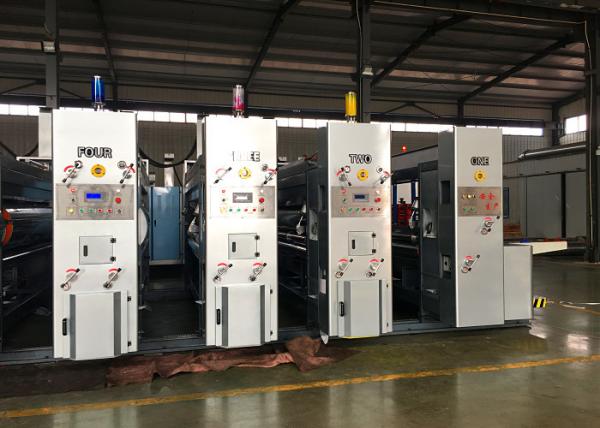

    The Machine photo ( lead edge feeding department PLC control pannel )
