    Professional Flat Carton Die Cutting Creasing Machine 4200 Sheets / H Working Speed

    Ask Lasest Price
    Brand Name : ZHAOLI
    Model Number : MR1600 MR1800 MR2000 MR2200 MR2400
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, Western Union
    Supply Ability : 10 SETS / MONTH
    Delivery Time : 20-30 DAYS
    • Product Details
    • Company Profile

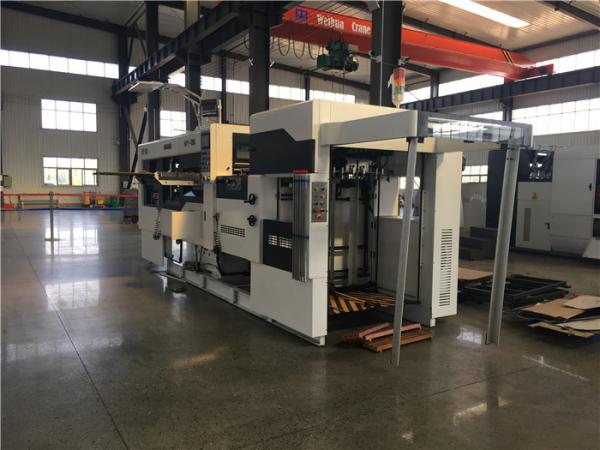

    Professional Flat Carton Die Cutting Creasing Machine 4200 Sheets / H Working Speed

    automatic flat carton die cutting creasing machine


    Machine Introduction:


    The MY serious Automatic Die Cutting and Creasing Machine is the main equipment for making high-grade color box, plug and different shapes of ink cartons.

    The machine adopts Anchuan servo system, Gogol four axes motion controller, non-pressure feeding system, high strength gripper teeth row, whole swing front guide, automatic pushing guide, high precision interval structure, pneumatic locking plate. Pneumatic clutch, overload protector, automatic paper collecting, makes our machine has a short paper feeding distance, positioning correctly, paper collecting in order, can also do non-gripper die cutting.

    Computer control makes the whole machine running automatically, man-machine interface display the working condition and trouble dealing method. Key components, control systems and fasteners are imported and carefully assembled to ensure the safety and reliability of the machine. With many sensors and protection devices to ensure machine working and workers safety.

    Technical Parameters:


    ItemParametersParameters
    ModelMY-1500MY-1650
    Die cutting typePressed flat die cutting(Lower side is movable while upper side is unmovable)Pressed flat die cutting(Lower side is movable while upper side is unmovable)
    Max paper transmitting size1500*1100mm1650*1200mm
    Min paper transmitting size450*550mm500*550mm
    Max die cutting size1480*1080mm1630*1180mm
    Min gripper size8mm8mm
    Max die cutting pressure350N/cm²350N/cm²
    Paper processedCorrugated board ≦8mmCorrugated board ≦8mm
    Die cutting precision±0.1mm±0.1mm
    Max die cutting speed4200 sheets/h4200 sheets/h
    Max feeding pile height1400mm(above the level)1400mm(above the level)
    Min feeding pile height1300mm(above the level)1300mm(above the level)
    Main motor power11 kw11 kw
    Total power33.6 kw33.6 kw
