Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard

    Buy cheap Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard from wholesalers

    Buy cheap Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard from wholesalers
    • Buy cheap Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard from wholesalers

    Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard

    Ask Lasest Price
    Brand Name : zhaoli
    Model Number : ZL1200mm
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union
    Supply Ability : 100set per month
    Delivery Time : 15 days after get diposit
    • Product Details
    • Company Profile

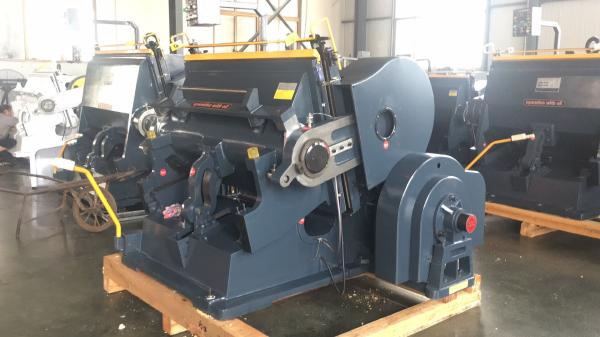

    Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard


    Flat Carton Die Cutting Machine / Die Cutter For Cutting Cardboard


    Main Technical Details:

    ModelInner Chase Size (mm)SpeedMax. Rule LengthMotor PowerMachine WeightOverall
    Dimensions (mm)
    ML25002500×150011±2
    Strokes/Min
    <80m22kw20000kg3680×2500×2580
    ML22002200×140011±2
    Strokes/Min
    <80m18kw18000kg3680×2450×2580
    ML20002000×140013±2
    Strokes/Min
    <65m15kw16000kg2200×3050×2450
    ML18001800×125013±2
    Strokes/Min
    <60m11.5kw14000kg2200×2850×2350
    ML16001600×125013±2
    Strokes/Min
    <50m11kw12000kg2220×2650×1950
    ML15001500×104014±2
    Strokes/Min
    <48m7.5kw8000kg2050×2500×1950
    ML14001400×100015±2
    Strokes/Min
    <45m5.5kw6500kg2050×2400×1900
    ML13001300×92016±2
    Strokes/Min
    <40m5.5kw5600kg2050×2300×1800
    ML12001200×82020±2
    Strokes/Min
    <35m4kw-6H5000kg2050×1950×1750
    ML11001040×80020±2
    Strokes/Min
    <32m4kw-6H4500kg2050×1820×1750
    PYQ203930×67023±3
    Strokes/Min
    <25m4kw3000kg1800×1550×1600
    ML750750×52025±3
    Strokes/Min
    <15m2.2kw-6H2000kg1350×1500×1400

    Usage

    Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corrugated board plastic and leather ingeneral, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.


    1. Sliding bearings are made of high quality alloy copper, thus to get effect of anti-frietion and shake reducing.
    2. High strength due to one piece casting by using top-ranking material for machine body.
    3. Single plate electromagnetic clutch is sensitive and reliable.
    4. With functions of single, continuous and opening dwell operation, dwell range is adjustable.

    5. Flysheel torque is big, so the pressure is larger.
    6. Operating position is reasonably arranged, moving-bed can be opened to its optimum.
    7. Safety system is reliable.


    Note: electric parts is Omron and Schneider


    Four safety, when you touch this four place, the machine will stop, it is very safe.
