Zhaoli Brand Corrugated Aseembly Partition Machine / Carton Box
Making Aseembly Machine
Automatic Partition Assembly machine characteristics
1 Lengthways and horizontal sheets do decussation inserting.
2 Automatic inserting each kinds clapboard and block
3 Instead of manual, two sets per time.
4 Auto inserting each kind clapboard and block.
5 Double-position output type,double efficacy.
6 Pneumatic system and electric system to make sure the advancement
of device control.
7 Each steam equipment get gas from the main pipe,independent
control,no mutual influence.
8 PLC man-machine interface,easy to operate.
The partition assembly machine main parameter
| power | 10kw | Not include air compressor |
| Host belt speed | 15-30m/min | |
| Clapboard combining form | 3*(1~n) | In double working station |
| Longitudinal clapboard feeding track No. | 6 |
| Horizontal clapboard feeding track No. | 1~12 |
| Clapboard size | Length L=120~500mm | Clapboard thickness 1.5~7mm |
| Height H=75~200mm | |
| Width W=120~500mm(double station) | Width W=120~900(single station) |
| Lattice space C=40~150mm | |
| Lattice space D=30~150mm | |
| Working speed | 30-60groups/min | Working speed is connected with clapboard size and clapboard
combining form |
| Machine weight | 3000kg |
| Overall dimension | 5500x2200x2000mm |
Note: when width of clapboard is greater than 450mm, the machine
just can work in single station. Air compressor or air compressor station requirement: 6kgf/cm². For the special type of clapboard, we can customize the machine as
client’s wish. |
The pictures of partitin assembly machine

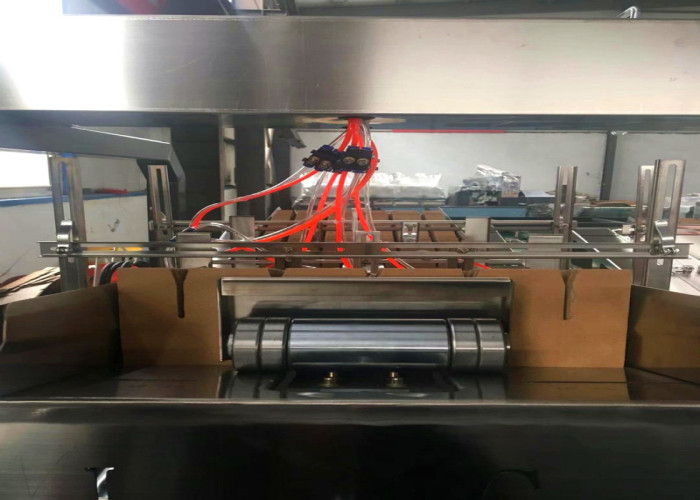

The Assembly partition machine details show photos
About Assembly Partition Packaging & Shipping Details
PE Film Wrapping with this machine fasten and for main parts and
whole machine, wooden case or carton box for small parts, then
loaded in 20 ' and 40 ' container, then fixed with
container.according to customer requirements.
