    Corrugated Carton Rotary Slotter Machine / Carton Box Machine With Fast Speed

    Ask Lasest Price
    Brand Name : Zhaoli
    Model Number : 1200 X 2800 mm
    Certification : CE Certificate
    Price : USD 20000 - 50000 Per Set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 5 Sets Per Month
    Delivery Time : 40 Work Days
    • Product Details
    • Company Profile

    Corrugated Carton Rotary Slotter Machine / Carton Box Machine With Fast Speed


    Automatic Corrugated Carton Rotary Slotter Machine / Corrugated Carton Box Machine


    1 Machine description and advantages


    (1) Vacuum suction with 4 shafts automatic lead edge feeder.


    (2 ) Motorized movement for the slotting wheels and order memory system by 200 orders.


    (3) The phase is motorized movement by PLC touch screen operation.


    (4) One set of board feeding rolls and two sets of creasing score rolls.

    (5) All the carton size ,height and phase was adjusted by computer ,man-machine interface ,save time and energy ,improved the working efficiency ,the computer can storage orders, you can input the length ,width ,height of the carton ,or find the data in the orders ,then the slotting knives ,creasing wheels will move to the proper position automatically by computer

    (6) Creasing device is process balance correction, smooth operation.

    (7) Pressing roller adopt French Martin technology, use hard pressure the soft, the press line straight and not easy seam broken line .

    (8)The slotting knives is alloy steel material after heat treatment grinding tooth slotting knife, hardness and toughness is good .

    (9) Alloy steel after heat treatment material grinding trimming edge knife, knife edge sharp, high precision,lowest error .

    (10) the functions of the automatic slotter : slot , slitter ,scorer , cutting angle .


    2 Machine Main parameter

    Machine design speed200 pcs/min
    Machine efficient speed180pcs/min
    Machine wallboard thickness50 mm
    The width of machine3000 mm
    Max feeder paperboard size1158 X 2800 mm
    Min feeder paperboard size380 X 700 mm
    Min slot interval (L*W*L*W)240X60X240X60 mm
    Min height of box235 mm
    Machine dimension4800 X 3000 X 1800 mm
    Adjust slot knives typeComputer adjustment

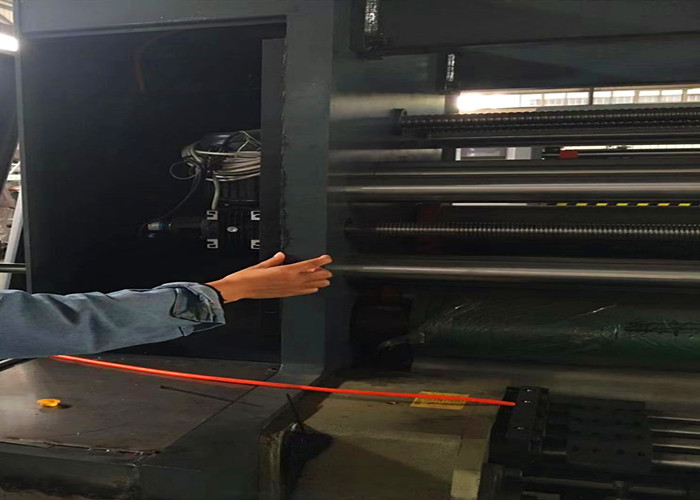

    3 Rotary Slotter Machine Main details picture ( The machine wallboard thickness )
