    Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric

    Ask Lasest Price
    Brand Name : ZL
    Model Number : 1300, 1500, 1600
    Certification : CE
    Price : USD + Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

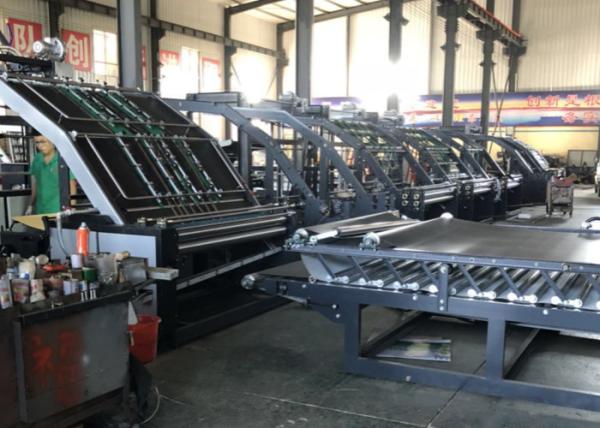

    Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric


    Fully Automatic Flute Laminating Machine For Cartons With Famous Brand Electric


    Description:


    The flute laminating machine is to glue facial paper and corrugated board together. The bottom paper must be corrugated board. The top paper should be 150-600g, the bottom paper can be two layer, three layer, four layer and five layer, flute can be A/B/C/E, not more than 12mm thick. This machine is very popular and used widely.


    Features:

    • The flute laminating machine uses touch screen control, PLC, servo motor control system, the electric is famous brand, circuit system is stable. It can dispaly the failure alarm automatically, very safe.
    • The vacuum suction type feeding can feed the paper into the machine accurately, also the facial paper is stacking automatically.
    • The bottom paper is vacuum suction feeding, accdording to the speed of the facial paper, it can catch up it automatically.
    • Automatic gluing and glue cycling can avoid glue waste.The glue roller is easy to clean.
    • The counting section can record the quantity of work you have done.

    Main specification:


    model130015001600
    max feeding size1300x1100mm1500x1100mm1600x1250mm
    min feeding size400x400mm400x400m400x400mm
    speed100 pcs/min100 pcs/min100 pcs/min
    precision±1.5±1.5±1.5
    power10kw12kw12kw
    dimension10x2x2.4m10x2.15x2.4m10x2.25x2.4m
    weight5t6t6t
