Automatic 3ply Corrugated Cardboard Flute Laminating Machine
Machine introduction:
1. This automatic flute laminating machine adopts chain pusher and
back registion system together with spring blade side lay and
vacuum sucking conveying system make this series of machine fit a
larger of paper, hing precision while remaining the features of
easy operation and maintenance.
2. This machine glue roller adopts high design, match with anliox
roller and rubber roller, the uniformity of the coating was
improved greatly, increase the intensity of draping. Reduce the
cost of the customer production.
3. Balance-tested rollers, tight assembling technique, plus timing
and tooth belt driving mechanic system makes the machine run at low
noise with high precision.
4. The machine adopts automatic glue supply and recyclable glue
circulating system.
5. Self-developed high-strength feeder compliant with high
configuration electric system makes the machine run at low
malfunction and stable. The electric parts used are all world wide
available brand or well-known Chinese brand.
6. All material are inspected according to ISO-9001 standard and
key parts such as the harmonic gear and bearings are imported ones.
The bottom sheet for this machine can be A,B,C,D,E,F flute
corrugated sheet. It can do 3,5 ply board to sheet lamination or
board to board lamination. The range for top paper can 200-600gsm
with top paper advance or alignment function.
| Technology Parameter |
| Model | 1300X1100 | 1450X1100 |
| Max.working size | 1300x1100mm | 1450x1100mm |
| Min.working size | 350x350mm | 350x350mm |
| Laminate precision | ≦±1.5mm | ≦±1.5mm |
| Speed | 9000 sheets/h | 9000 sheets/h |
| Total power | 12kw | 12kw |
| Machine length | 12.5m | 12.5m |
| Weight | 6.8t | 7.2t |

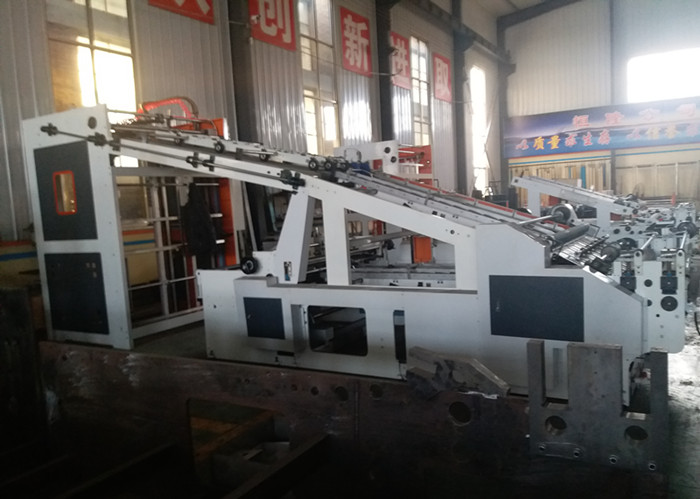

Machine picture:
