Brand Name : | Zhaoli Brand |
Model Number : | MY 1300 MM |
Certification : | CE Certification |
Price : | Negotiation |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 30 Sets Per Month |
Delivery Time : | 30 - 35 Days |
Flat Type Automatic Corrugated Paper Board Die Cutter Machine / Carton Box Packing Machine
1 Flat Type Die Cutter Machine introduction
(1) This machine adds the functions of strpping system besides the automatic die cutting and creasing machine . It can remove all the useless blockes or edges , so the production efficiency is greatly improved , it is especially used in the complicated carton box .
(2)Used Servo Motor and have correction part of this machine . it is easy to operate this machine
(3 ) Adopt high quality and famous electric appliances , such as Fuji , Siemens , Schneider , Omron ,LS Delta , Q-Light and so on .
(4) Die cutter unit adopts pneumatic die chase locking system .
(5 ) Iit controlled by Pneumatic clutch .
2 Flat Type Die Cutting Machine main Parameter
Model | MY 1300 mm |
Max Paper Size | 1320 X 980 mm |
Min Paper Size | 350 X 450 mm |
Max Die Cutting Size | 1300 X 960 mm |
Die Cutting Pressure | 350 T |
Max Die Cutting Speed | 5000 sheets / h |
Corrugated Paper | 3-10 mm |
Power | As customers wish |

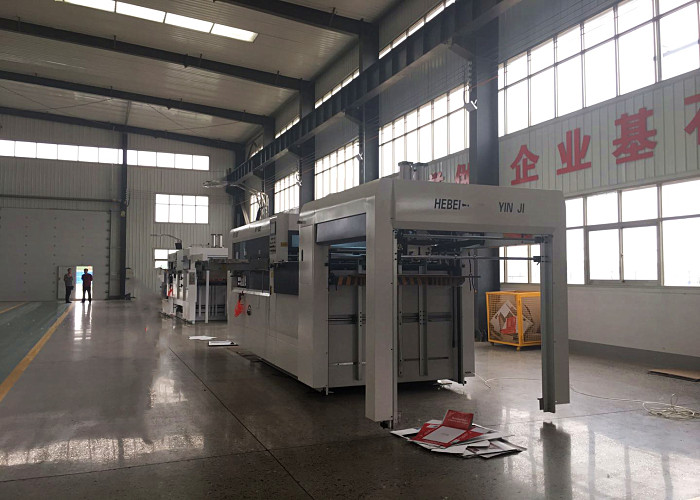

3 Flat Type Die Cutting Machine real picture
![]() |
