2ply Electric and Gas Heating Single Facer Corrugated Cardboard
Machine
Machine Ffeature:
1.It can automatisally and recudingly offering glue. Pneumatic
dealing with corrugated board. Corrugated rollers are cut and
polished by special mixture of wetal.
2. top-style vacwwm absorption
3. The whole fears are tempared the wardness reades HRC 55-60. The
main axis is lubricated by high-temperatwred oil
4. highest speed is 40 meters.
5. 3.Cut the paper range to cut vertically for four times, crosscut
400-2400mm. Cut paper precision ± 2.5mm.
6. Base paper lifting adopts electric system
7. Effective working size: 1400mm-1800mm
Max.paper size: 1500*1700mm
Min.paper size: 500*600mm
Technology Parameter:
| model | DW-1400 | DW-1600 |
| working width | 1400mm | 1600mm |
| speed | 30-40m/min | 30-40m/min |
| heating type | electric, steam, oil | electric, steam, oil |
| machine weight | 3000kg | 3500kg |
| power | 18kw | 18kw |
Package:
plastic film for main parts, wooden case or carton box for small
parts, then loaded in 20' and 40' container, then fixed with
container.according to customer requirements. according to customer
requirements.
The normal package is plastic film(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request.
Induction:
Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type
company which consisted of import & export sales department and two
machine manufacture factories . Specializing in the production of
two series of products, the one type of main products are "Taobao
carton forming slotting machine, Taobao carton printing slotting
machine, automatic multi knives slitting machine, automatic
partition board assembler machine, automatic partition board
machine" etc. for small carton packing ; the other type of main
products are like the tranditional carton machines , like flexo
printer slotter die cutter machine , folder gluer mahine ,
laminator machine , corrugated cardboard production line etc. At
present, our products not only sale in the domestic but also sale
to Europe Union, Middle East, South-east Asia, Russia, South Africa
and other countries and areas.
Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from
research and development for the corrugated carton printing machine
to current "Taobao carton specializing machines serious and
automatic partition board assembler machine serious" , it gives
full play to every technologies on the advancement and
manufacturing on the reliability, thus we can keep the leading
position in the field of corrugated carton making machinery. All of
our machines adopt advanced laser cutting technique in processing
center to finish every structure units, our machines can use our
unique technology to realize
even if the cartons are difficult to make.
Our company will do our best to meet customer's requirements, and
bring abundant retribution to new and old customers with new
innovation, development and perfect after-sale service.

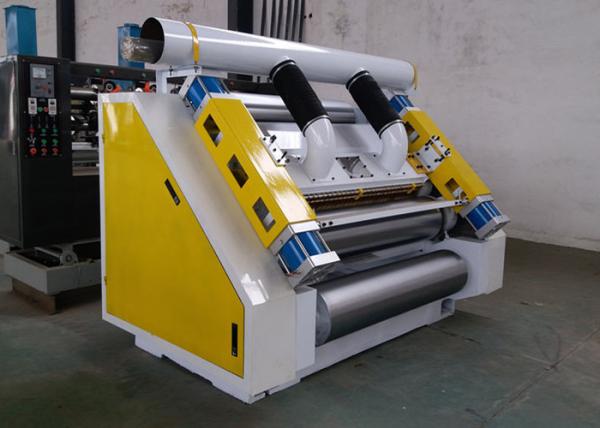

Machine Pictures:
