3 Layer Automatic Corrugated Cardboard Production Line Mahcine

※ main technical parameters and requirements in production line type:

WJ100-1800-I type three layer corrugated paperboard production line:

The maximum production width of the corrugated cardboard:1800mm

Design speed:100m/min

Economic speed:60-80m/min

note:Production line speed test paper should meet the following requirements:(the surface temperature of the equipment is not less than 172℃)

﹡Paper rating of not less than B grade ﹡Paper moisture content of about:11%±2%

﹡top paper:100—250g/m² ﹡core paper:100--250g/m²

﹡corrugated paper:100—200g/m²

1. Flute-type combination:A ,C, B, E(as customers’ requirement)

2. Steam the necessary requirements:

3. amount of steam 2500—3000Kg/Hr ﹡the highest pressure:1.2Mpa

4. common pressure:0.8-1.1Mpa

5. power supply:380V 50Hz Three-phase four-wire system

6. equipment installed total power:about120KW

7. The actual power consumption:about 60KW(full speed)

8. equipment covers:about40m×10m×5m(Specific length of foundation Figure prevail)

9. Equipment out of paper orientation:According to the user to determine the transmission plant set left or right position

10. Equipment applicability,Available in A, B, C class domestic or imported paper Paper

package:

plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.

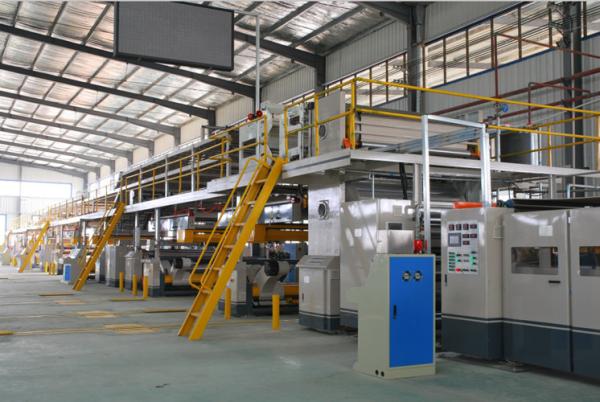

picture:

Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type company which consisted of import & export sales department and two machine manufacture factories . Specializing in the production of two series of products, the one type of main products are " carton forming slotting machine, carton printing slotting machine, automatic multi knives slitting machine, automatic partition board assembler machine, automatic partition board machine" etc. for small carton packing ; the other type of main products are like the tranditional carton machines , like flexo printer slotter die cutter machine , folder gluer mahine , laminator machine , corrugated cardboard production line etc. At present, our products not only sale in the domestic but also sale to Europe Union, Middle East, South-east Asia, Russia, South Africa and other countries and areas.

Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from research and development for the corrugated carton printing machine to current " carton specializing machines serious and automatic partition board assembler machine serious " , it gives full play to every technologies on the advancement and manufacturing on the reliability, thus we can keep the leading position in the field of corrugated carton making machinery. All of our machines adopt advanced laser cutting technique in processing center to finish every structure units, our machines can use our unique technology to realize even if the cartons are difficult to make.

Our company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers with new innovation, development and perfect after-sale service.
