Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine

    Buy cheap Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine from wholesalers

    Buy cheap Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine from wholesalers
    • Buy cheap Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine from wholesalers
    • Buy cheap Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine from wholesalers

    Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine

    Ask Lasest Price
    Brand Name : ZHAOLI
    Model Number : 1200 * 2400 MM
    Certification : CE
    Price : USD 60000 - 100000 Per Set
    Payment Terms : T/T Advanced
    Supply Ability : 5 Sets Per Month
    Delivery Time : 50- 90 Work Days
    • Product Details
    • Company Profile

    Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine


    Alloy Steel Computer Automatic flexo Printing Slotting Machine / Carton Box Making Machine


    The Automatic Printer slotter Whole Machine Function :


    1. Control system : adopting full computer PLC control system from Germany, can store 999 orders; Wiping plate memory, change orders quickly, the whole machine zero, precise automatic version control .

    2. Feed Department : adopting adsorption leading edge feeding system with three axles rolling wheel type , front and back two rows , the upper and lower rubber roller feeding paper with light pressure, stable and accurate.

    3. Printing Department : ink transfer system : anilox roller , rubber roller made in Jiangsu “HAILI” " , ink transmission and printing has the excellent effect .

    4. Die Cutting Department : "KEB" servo control in Germany, computer with independent drive, thoroughly eliminate the die cutting impact effect to printing group and the printing effect . Rubber gasket roll automatic compensate the vertical speed difference, automatically lateral move, increase the service life of the rubber gasket .

    5. Folding department : equipped with adjustable pressing-line wheel, making cartons be folded more smoothly, glue more beautiful and exact.

    6. Transmission Gear : adopting high quality 40cr alloy steel with high frequency quenching treatment, high precision teeth grinding processing, make the gear with high precision, high resistance to wear, stable and reliable transmission, has reached to the standards for grade 6.

    7. Electrical Control : the national famous brand China “CHINT”, Shanghai “Renmin” , stable and durable, convenient to purchase. Bearing is made by Chinese three major brands places, “Harbin” , “Wafangdian” “Luoyang”, high precision, long service life.


    The Carton Box Printe r Slotter Main Parameter


    Item2400 model type
    Wallboard medial width50 mm
    The diameter of the anilox420 mm
    Max feeding paperboard size1600 mm*2400 mm
    Max effective printing size1600 mm*2200 mm
    Min process paperboard size420 mm*700 mm
    Thickness of the printing plank7.2 mm
    Max speed150 pieces/min
    Economical speed100-120 pieces/min
    Precision of the printing±0.75 mm
    Precision of the slotting±1 mm
    Max depth of slotting300 mm
    Min grooving space300mm*100mm*300mm*100mm
    Printing rolling axle circle-oriented regulating360 degree revolving
    Printing rolling axle-oriented regulating+/-10mm
    Power22 kw
    Power supplyas customer’s wish

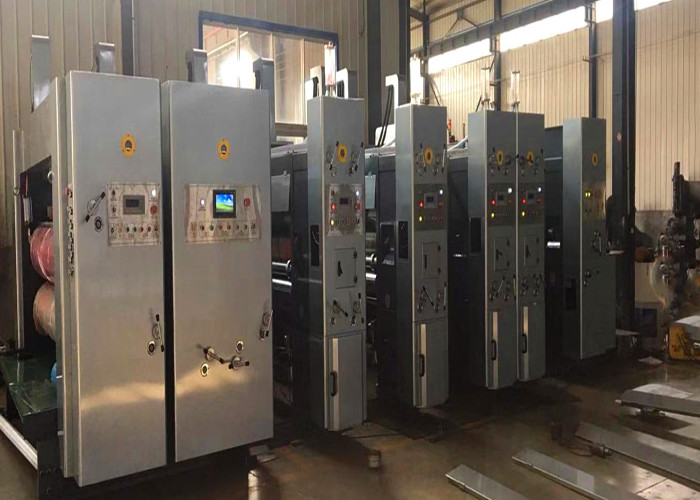

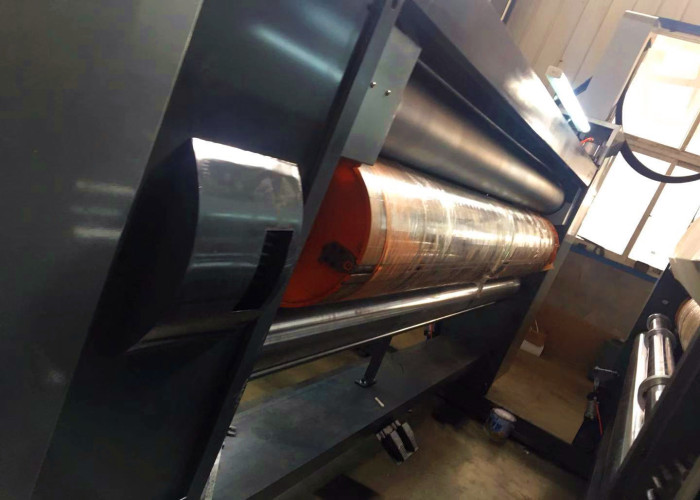

    The Automatic Printing Slotting Real Photos
