Corrugated Packing Carton Automatic Feeding Water Ink Printer
Slotter Die Cutter Machine
1 The whole machine details features and instruduction
The machine main printing department
1, printing roller and embossing roller adopt high quality,
thick-walled seamless steel pipe, surface grinding, hard chromium
plating.
2, anilox roll the dalian tengda Φ 175 mm high quality steel 200
mesh / 220 mesh, can be more than 45 line flexible printed version.
Spent 3 rubber roller adopts jizhou chunfeng Φ 175 mm high quality
resistant, oil resistant, acid and alkali resistant rubber, to
design the high grinding, the effect is good.
4, of the printing system, in version is easy to operate, and is
equipped with foot switch, convenient to hang version 5, print
roller pressure adjustment and high-speed printing machine driving
cross slider no clearance adjustment for high precision
fine-tuning, can make the printing pressure to reach the best
state.
6, 360 ° electric phase, the digital display control device by
computer CPU, according to the error of input data directly,
automatic adjustment phase, printing power phase adjusting
mechanism adopts planetary gear mechanism work, did not stop the
condition, any adjustment can be 360 °, the axial adjustment for
manual, the adjustable distance 30 mm, machine regulated or stop
operating.
7, diaphragm pump automatically to the ink system, pneumatic lift
version, gas into the ink, and is equipped with automatic
distributing system, effectively avoid intermittent, the machine
stops ink dries, the adverse factors affecting the printing effect,
back to refill tube using 1.2 inch PVC pipe, tube wall is smooth,
prevent sticking ink ink, can put more ink ink barrels back, in a
timely manner to avoid ink leakage phenomenon.
8, pneumatic brake brake mechanism, when the machine separation
limit the machine regulated, keep the gear fixed position.
Printing roller
(1) for phi, diameter 408.6 mm (including version of outer diameter
to 410 mm).
- , steel pipe surface grinding, hard chromium plating.
(3), do the balance calibration, smooth operation.
(4), ratchet fixed volume edition axis.
(5), the full version version of the groove, suitable for 10 mm * 3
mm version of the article.
(6), loading and unloading in print, pedal switch electric control
and reversing.
2, printing roller
(1), the outer diameter of 156 mm.
(2), steel pipe surface grinding, hard chromium plating.
(3), do the balance calibration, smooth operation.
(4), the printing press dial manually adjust the roll gap,
adjusting range 0-12 mm.
3, to send a piece of paper, under the roller (1), the roller:
outer diameter for 86 mm thick wall steel pipe, with the three
paper ring.
(2), under the roller: outer diameter for 156 mm thick wall steel
pipe, surface grinding, hard chromium plating.
(3), paper roll gap dial manual adjustment, adjustment range 0-12
mm.
2 Machine main details parameter
| machine speed | 120 pcs /min |
| max feeder board area | 1200 X 2800 mm |
| max printer board area | 1200 x 2600 mm |
| slot space | 300 X 100 X 300 x 100 mm |
| machine power | 13kw |
| machine color | grey |

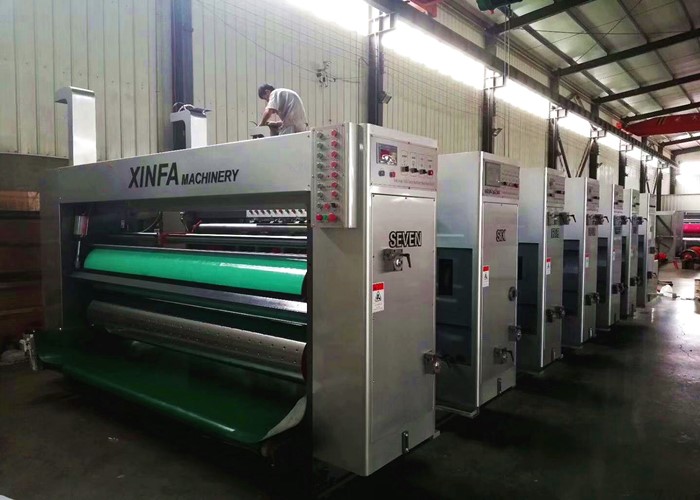

3 Machine main picture show
