High Configuration Automatic Feeder Water Base Ink Printer Slotter Die Cutter Machine For Carton Box Packing

1Flexo Printer Machine for description ( Slotting department )

1. Computer touch screen is adopted

Through PLC and rotary encoder, automatic detection and adjustment can be made. Storage orders can be invoked.

2. Full computer adjustment

In addition to using the computer touch screen, adjust the axial direction and box height of each cutter seat through PLC and rotary encoder. Electric control buttons can also be used to adjust the axial direction of each cutter seat and the height of the box.

3. Slotting phase adjustment

1) Slotting phase adjustment adopts PLC touching screen frequency conversion controland electric digital 360 ° adjustment (motion and stop all can be adjusted).

2) Phase zero setting device to ensure consistent slot position.

4. Pre-creasing section

1) Pre-creasing shaft diameter 110mm, adopt high-quality seamless steel pipe. Surface grinding, dynamic balance correction, hard chrome plating, smooth rotation.

2) The pre-creasing wheel adopts advanced technology to improve the large pre-creasing wheel , so that the paperboard will not be broken when crease the line.

5. Creasing wheel section

1) The diameter of the creasing roller is 124mm, and high-quality seamless steel pipe is adopted. Surface grinding, dynamic balance correction, hard chrome plating, smooth rotation.

2) The creasing wheel adopts advanced technology. The upper wheel is made of high hardness resin glue and grooves in the middle. When passing the board synchronously with the lower wheel, the board line does not run away from the slant.

3) The axial position of the creasing wheel, the pre-creasing wheel and the slotting cutter disk is automatically adjusted synchronously through the precision ball screw.

4) The lower roller adjustment of the creasing wheel, pre-creasing roller, and slotting blade, adjustable eccentricity sleeve structure is adopted to make the structure compact, easy to adjust and accurate positioning;

5) The lower roller clearance adjustment of the creasing wheel, pre-creasing roller, and slotting blade are manually adjusted by the double-pole self-locking worm wheel body, and the clearance is adjusted by eccentric gear and marked with scale.

6. Pre-creasing, slitting and slotting blade seat

1) The upper roller diameter of slotting is 156mm, seamless steel tube, the two times of grinding, the surface hard chromium plating, moving smoothly.

2) The lower roller diameter of slotting is 156mm, seamless steel tube, the two times of grinding, the surface hard chromium plating, moving smoothly.

3) Precision machining of upper slotting blade disc.

4) Electric adjustment of synchronous axial position of the upper and lower slotting blade discs, the creasing wheel, the slitting knife disc and the pre-creasing wheel.

5) Single shaft-double blades slotting, the box height adjustment adopts the internal tooth electric control structure, so that the lubricating oil is not easy to contaminate the carton. And the box height adjustment has electronic collision protection device, will not damage the machine.

6) The guide plate traverse mechanism adopts the combination design of precision ball screw and linear optical axis, with flexible movement and accurate positioning.

7. Slot phase adjustment mechanism

1) Planetary gear structure.

2) Slotting phase is controlled by computer and electric digital 360 ° adjusted (motion and stop all can be adjusted).

8. Operate & control switch

The control panel is equipped with a 6-inch touching screen, which makes it easy to adjust the size of slotting .

2 Machine Main datas

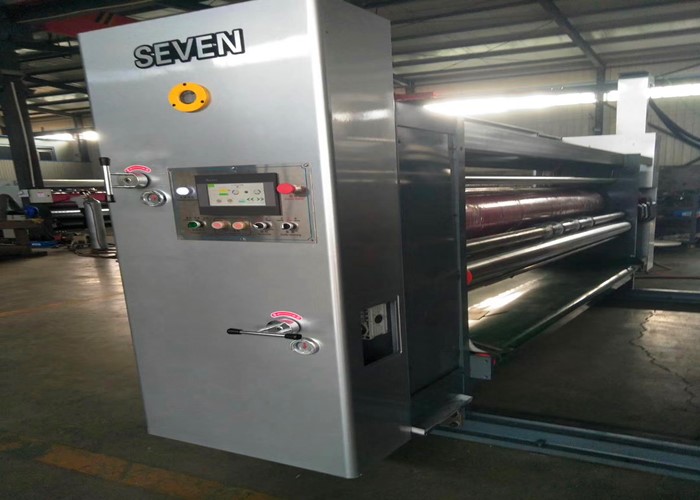

3 Machine main picture
