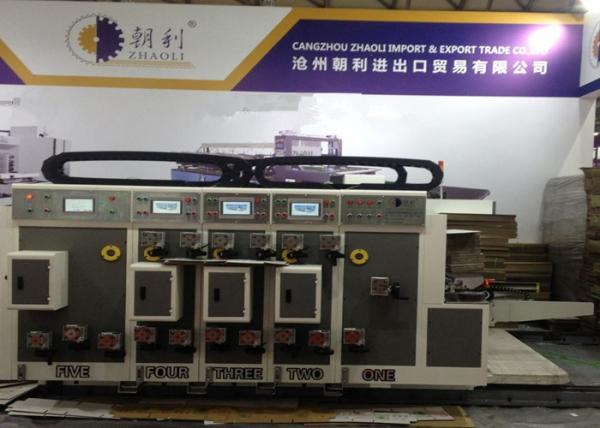

Carton Corrugated Auaomatic Independent Lead Edge Feeding Printer Slotter Machine

1. This machine wallboard thickness 40mm,gear thickness 50mm,adopt 40CrMnTi steel forging piece,treated with tempering and grinding,hardness can reach to 45-48HRC after high-frequency quenching.Whole machine is equipped with vacuum adsorption assistance,lead edge feeding system which is capable to accomplish the whole process of cardboard printing,slotting and die cutting,etc.The computer control unit is adjusted by multi-group communication computer, and the host computer adopts large screen PLC unified control system, which can independently control the paper feeding department, printing department, slotting part, die cutting unit and printing plate roll with hanging plate zeroing device, and equipped with foot switch.

2. Double creasing wheel and pre-creasing slotting unit,electric adjustment slotting depth and 360°phase.Slotting knife plate,creasing wheel and pre-creasing wheel left and right movement is screw shaft electric inching movement adjust and equipped with a scale reading device.The slotted phase adjustment mechanism is a planetary gear structure. The minimum 200mm of the paper base of the driving shaft of the whole machine can achieve the minimum 210mm cardboard pass.

3. Remarks Optional:Die cutting unit optional with slotting knives attachment.

Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type company which consisted of import & export sales department and two machine manufacture factories . Specializing in the production of two series of products, the one type of main products are " carton forming slotting machine, carton printing slotting machine, automatic multi knives slitting machine, automatic partition board assembler machine, automatic partition board machine" etc. for small carton packing ; the other type of main products are like the tranditional carton machines , like flexo printer slotter die cutter machine , folder gluer mahine , laminator machine , corrugated cardboard production line etc. At present, our products not only sale in the domestic but also sale to Europe Union, Middle East, South-east Asia, Russia, South Africa and other countries and areas.

Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from research and development for the corrugated carton printing machine to current " carton specializing machines serious and automatic partition board assembler machine serious " , it gives full play to every technologies on the advancement and manufacturing on the reliability, thus we can keep the leading position in the field of corrugated carton making machinery. All of our machines adopt advanced laser cutting technique in processing center to finish every structure units, our machines can use our unique technology to realize even if the cartons are difficult to make.

Our company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers with new innovation, development and perfect after-sale service.
