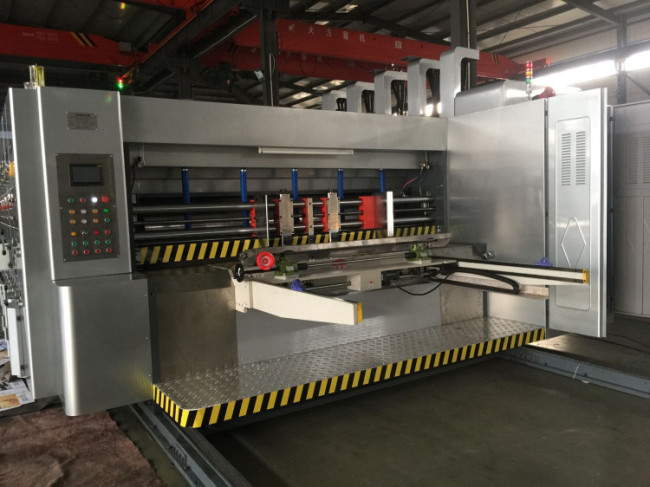

Automatic Cartons Flexo Printer Slotter Machine With Lead Edge Feeding

Description:

Fully automatic high speed printing slotting die cutting machine is the best model to make corrugated boxes. From printing, pressing, slotting or die cutting, then form the boxes. It is water ink printing, 1-5 colors, automatic cleaning. All the adjustment can be set on the screen, convenient to operate. Also it has alarm system, very safe for the people who operate the machine. This machine is a good choice for you to print boxes.

Machine Features:

Printing Unit

1. Phase adjustment device

• Planetary gear structure.
• The printing phase adopts LCD microcomputer electric digital 360 degree adjustment . (adjustable for operation and stop).
• Manual lateral position, +/-5mm adjustable distance.
• The printing plate roller adopts LCD microcomputer to adjust the phase, which can reset to zero and adjust the plate quickly with high precision.

2. Ink recycling system

• Pneumatic diaphragm pump, stable ink supply, easy operation and maintenance.
• Ink filter screen, filter impurities.

3. Printing phase fix device

• Pneumatic brake mechanism.
• When the units are separated or the in the process of phase adjustment, the brake mechanism restricts the rotation of the machine, maintains the fixed point of the original gear positon

Die cutting unit

1 Die cutter roller (down roller)

• Outer diameter: Φ430mm.
• Material: cast iron. It is surface-grinded and hard chrome-plated.
• It is balance regulated to make it more smoothly and steady when running.

2 Rubber roller (upper roller)

• Outer diameter: Φ434.2mm.
• Material: cast iron. It is surface-grinded and hard chrome-plated.
• It is balance regulated to make it more smoothly and steady when running.
• Rubber is famous brand, Taiwan MaxDura.
• Mechanical lateral 30mm movement device.

3 Phase adjust system

• Planet gears structure.
• Die-cutting phrase is adjusted electrically in 360° . (It can be adjusted when running or stopping.)
• Lateral width is adjusted electrically.
• Installed with universal knife to the down roller, it is convenient for customer to slot the regular shape carton without die-cutter.

Technical parameters:

Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type company which consisted of import & export sales department and two machine manufacture factories . Specializing in the production of two series of products, the one type of main products are " carton forming slotting machine, carton printing slotting machine, automatic multi knives slitting machine, automatic partition board assembler machine, automatic partition board machine" etc. for small carton packing ; the other type of main products are like the tranditional carton machines , like flexo printer slotter die cutter machine , folder gluer mahine , laminator machine , corrugated cardboard production line etc. At present, our products not only sale in the domestic but also sale to Europe Union, Middle East, South-east Asia, Russia, South Africa and other countries and areas.

Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from research and development for the corrugated carton printing machine to current " carton specializing machines serious and automatic partition board assembler machine serious " , it gives full play to every technologies on the advancement and manufacturing on the reliability, thus we can keep the leading position in the field of corrugated carton making machinery. All of our machines adopt advanced laser cutting technique in processing center to finish every structure units, our machines can use our unique technology to realize even if the cartons are difficult to make.

Our company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers with new innovation, development and perfect after-sale service.
