    Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine

    Ask Lasest Price
    Brand Name : ZhaoLi Brand
    Model Number : Model 2800 * 1600 mm
    Certification : CE
    Price : USD 5900 Per Set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3 Set Per Month
    Delivery Time : 60-80 Work Day
    • Product Details
    • Company Profile

    Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine

    Model 2800 * 1600 mm Automatic Corrugated Flexo Printing Slotting Machine


    The flexo printer slotter machine function and feature


    1 The electrical appliances all adpot the famous brand electrical appliances . such as servo moter , PLC , Phase and so on .

    2 The main drive gears adopt 40 Gr 20GrMoTi high frequency quenching finishing .


    3 All shaft chrome plating processing ,enchance show that surface hardness .


    4 Host motor machine adpots PLC man - machine interface control , the host using variable frequency drive .


    5 Gear using circulating spary lubrication drive .


    6 Feed department optional front paper board .


    7 Module design , multicolor printing unit arbitrary combination .


    The automatic water ink printer slotter machine main parameter .

    Item2800 * 1600 model type
    Wallboard medial width50 mm
    The diameter of the anilox530 mm
    Max feeding paperboard size2800 mm*1600 mm
    Max effective printing size2600 mm*1600 mm
    Min process paperboard size350 mm*700 mm
    Thickness of the printing plank7.2 mm
    Max speed150 pieces/min
    Economical speed120 pieces/min
    Precision of the printing±1 mm
    Precision of the slotting±1.5 mm
    Max depth of slotting300 mm
    Min grooving space300mm*100mm*300mm*100mm
    Printing rolling axle circle-oriented regulating360 degree revolving
    Printing rolling axle-oriented regulating+/-10mm
    Power22 kw
    Power supplyas customer’s wish

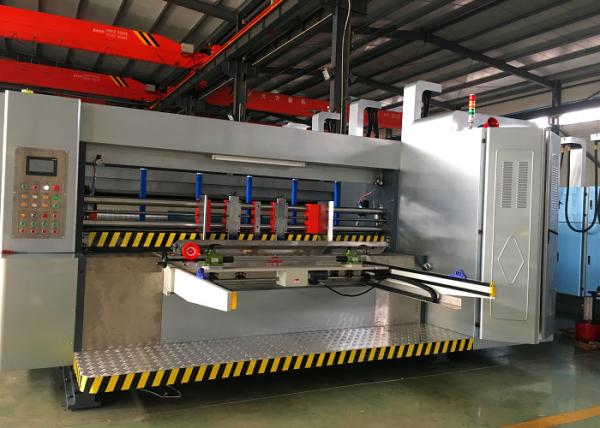

    The machine real picture ( all computer control Slotting department )
