Brand Name : | ZL |
Model Number : | 2500 |
Certification : | CE |
Price : | USD per set |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 10 sets per month |
Delivery Time : | 20 days |

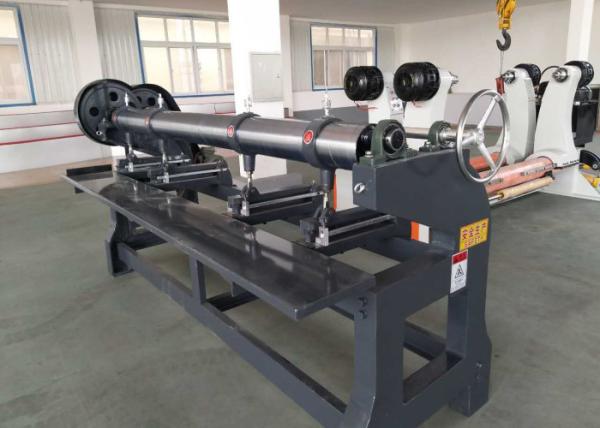

Corrugated Carton Machine Four Link Slotter Corner Cutting Machine
Machine introduction & Features:
1. It is a simple and easy machine, it can slot and cut the corner for common type boxes.
2. It is used to produce sinlge, double or multi layer corrugated carton.
3. It has compact structure, convenient adjustment.
4. The machine is with reck and easy adjustment slotting size.
5. The machine has the advantage of quick adjustment, beautiful slotting and so on.
Main specification:
Model | 2000 | 2500 | 3000 |
Max feeding width | 2000mm | 2500mm | 3000mm |
Size of slotting | 7x350 | 7x430 | 7x530 |
Size of corner cutting | 55x350 | 55x430 | 55x530 |
Speed | 40 pcs/min | 40 pcs/min | 40 pcs/min |
Power | 1.5kw | 1.5kw | 2.2kw |
Weight | 1000kg | 1200kg | 2000kg |
Diemension | 2250x1150x1500mm | 2850x1150x1500mm | 1850x1500x1600mm |
![]() |
