    2500kg Weight Corrugated Cardboard Machine / Carton Box Making Machine

    Ask Lasest Price
    Brand Name : ZHAOLI
    Model Number : YYZJ
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 30 SETS PER MONTH
    Delivery Time : 30 days after receive deposit
    • Product Details
    • Company Profile

    2500kg Weight Corrugated Cardboard Machine / Carton Box Making Machine

    Corrugated Cardboard Production Line Hydraulic Mill Roll Stand Corrugated Carton Machine


    Feature Corrugated Cardboard Production Line Hydraulic Mill Roll Stand Corrugated Carton Machine:

    1. Symmetric structure can install two bundle of paper tube at the same time, can change paper assignments without stopping .

    2. Adopts full hydraulic drive to complete the original paper clamping, loosen, move on to match and translation to right & left these motions and so on, original paper lifting adopts hydraulic drive.

    3. With two-stage inflatable paper carrying head , paper carrying head is 34 inch double type.

    Multipoint pneumatic brakes.


    Technology parameter
    Original paper shaft motion typefull hydraulic type motion
    Working size1600mm
    Paper carry widthmax 1600mm, min 800mm
    Paper carry diametermax Φ1500mm
    Max loading weight for single sidemax 2000 Kg
    Main roller diameter of paper shaftΦ242mm
    Air source working pressure0.6 - 0.8 Mpa
    Working power supply380v/3phase/50hz
    Machine dimension3.8x1.6x1.65m
    Hydraulic System Parameter
    Working pressure16-18 MPa
    Working range of hydraulic cylinder (lifting)Φ125 x440 mm
    Working range of hydraulic cyliner (clamping/translation)Φ80 x800 mm
    Motor power in hydraulic station5KW. Short-term (S2) working pattern
    The rated voltage and frequency380V , 50Hz
    Solenoid valve working power in hydraulic station220 V , 50 Hz
    Package:
    plastic film for main parts, wooden case or carton box for small parts, then loaded in 20' and 40' container, then fixed with container.according to customer requirements. according to customer requirements.
    Machine pictures Corrugated Cardboard Production Line Hydraulic Mill Roll Stand Corrugated Carton Machine​:

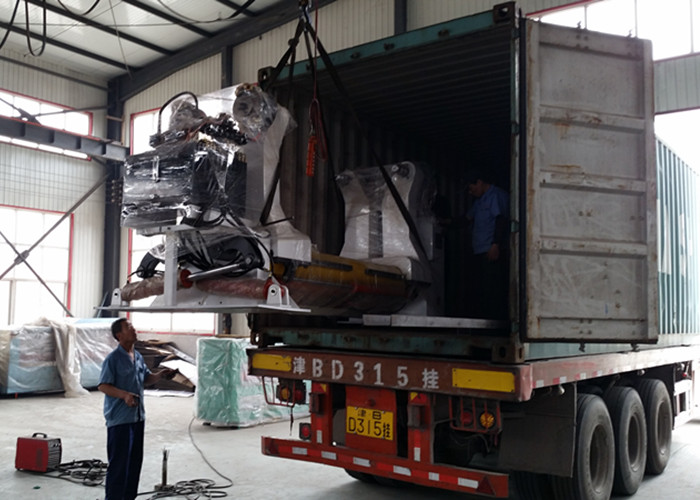

    Package picture:
