Brand Name : | Zhaoli Brand |
Model Number : | GBJ 1000mm |
Certification : | CE |
Price : | USD 3000 - 5000 Per Set |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 Sets Per Month |
Delivery Time : | 25- 30 work days |
Frequency Adsorb Automatic Corrugated Paperboard Partition Machine / Cardboard Slotting Machine
The partition machine features
Choose the corrugated paperboard which you want to process, adjust the side feeding baffle .
Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
The machine technological parameter
Paperboard feeding type | Automatic back kick feeding type |
Paperboard processing range 1 | Max 1000*280mm Min 100*75mm |
Paperboard processing range 2 | Max 1000*380mm Min 100*90mm |
Paperboard processing range 3 | Max 1000*600mm Min 180*140mm |
Min slotting distance | 45mm |
Slotting number | 9 groups of slotting knives |
Slotting width | 3.5mm 5mm 7mm (choose one according to the thinkness of paperboard) |
Working speed | 120 piece/min |
Three-phase motor | 380V 1.1kw |
Overall dimension | 1500mm*1450mm*1300mm |

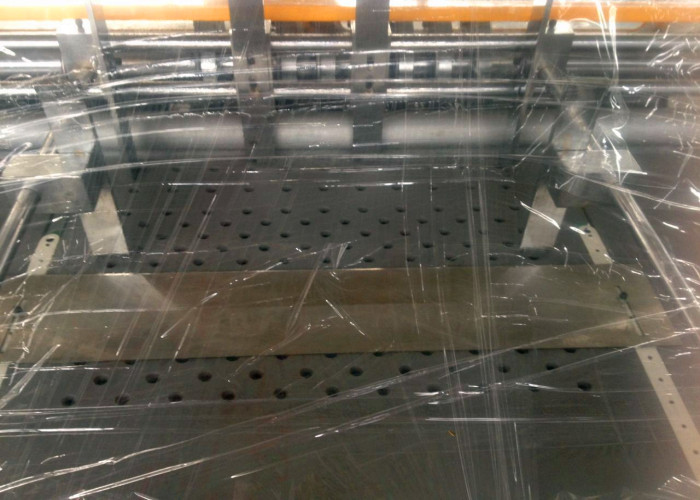

The machine Pictures (automatic partition machine)
![]() |
