Automatic Corrugated Paperboard Thin Blade Slitter Scorer Machine /
Automatic Feeder Paper Thin Blade Machine
1 Machine introduction
^ Paperboard is adjusted by screw rod structure . one people
operation , simple and working quickly .
^ Lead edge vacuum absorb big force of suction , long use life .
^ The stacker structure adjust convenient .
Slitter department
1 BFY series thin blade slitting scoring machine adopt thin knife
slitting, after wheel grinding the knife edge more sharp, make the
paperboard edge smooth and tidy, little flattening phenomenon,
improve the paperboard appearance quality and total quality,
special it is good for the paperboard printing in later processes,
reduce waste and improve carton quality.
2 The machine Keep knife edge sharp to make the slitting paperboard
smooth and tidy.
3 Adopt rubber roller sending paper, latter slitting, then rubber
roller put the paper, last scoring and forming, it is clear depth
when use the latter process scoring, slitting adopt high rigidity
slitting knife, driving knife is driven by timing belt, when change
knife can change quickly. Adopt rubber pull the paper, it is better
than other same machine.
4 Adjust scoring width manual, adopt single knife lifting
structure, can handover according to paperboard slitting number;
this machine can adjust cutter head which made by different wear
and damage.
2 Machine main papameter
| Machine Model | Model 2600 |
Max slitting paperboard size | 2600 mm |
Min feeding paperboard size | 125mm |
Blade adjust speed | 500mm/min |
Slitting knife number | 4 pieces |
Score wheel number | 6 paris |
Main fan power | 5.5 kw |
Slitting knife thickness | 1.3 kw |

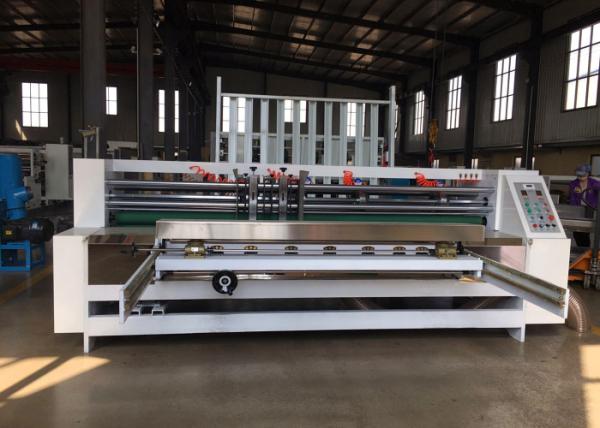

3 Machine details photo
