Brand Name : | ZHAOLI |
Model Number : | BL-2400 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, D/P, T/T, Western Union |
Supply Ability : | 30 set per month |
Delivery Time : | 20 days after receive deposit |
Main Structure :

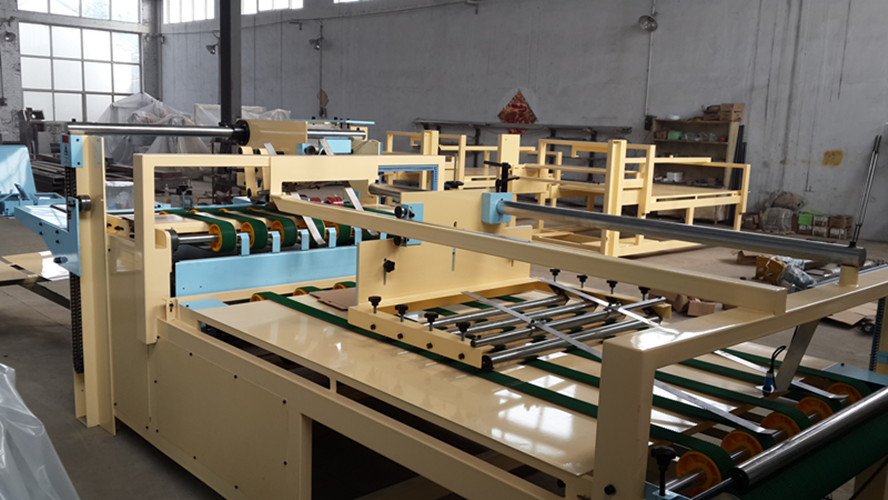

BZX 2800 semi automatic gluing machine is made of main frame and two little conveyors .
Main frame : frame , elevating working table , forepart conveyor , forepart correcting unit , middle conveyor , middle pressing device , end product side conveyor and electrical control device .
Technological Parameter
Parameter | specification |
max size ( length + width )*2 | 2800mm |
min size ( length + width )*2 | 340mm |
max size ( width + height ) | 1515mm |
min size ( width + height ) | 260mm |
the height of feeding | 1000mm |
motor power | 4.0 kw |
the dimension of machine | 5.5m * 2.5m * 1.5m |
the weight of machine | 1500 kg |
working speed | 60 m/min |
Applicable Scope And Characteristics :
v The equipment applies to the gluing for all kinds of cardboard and corrugated paper .
v Easy to operate without experience .
v One minute quickly change the size .
v The min size of width adding height is about 260mm .
v It is the ideal equipment for the carton box manufacturers .
![]() |
