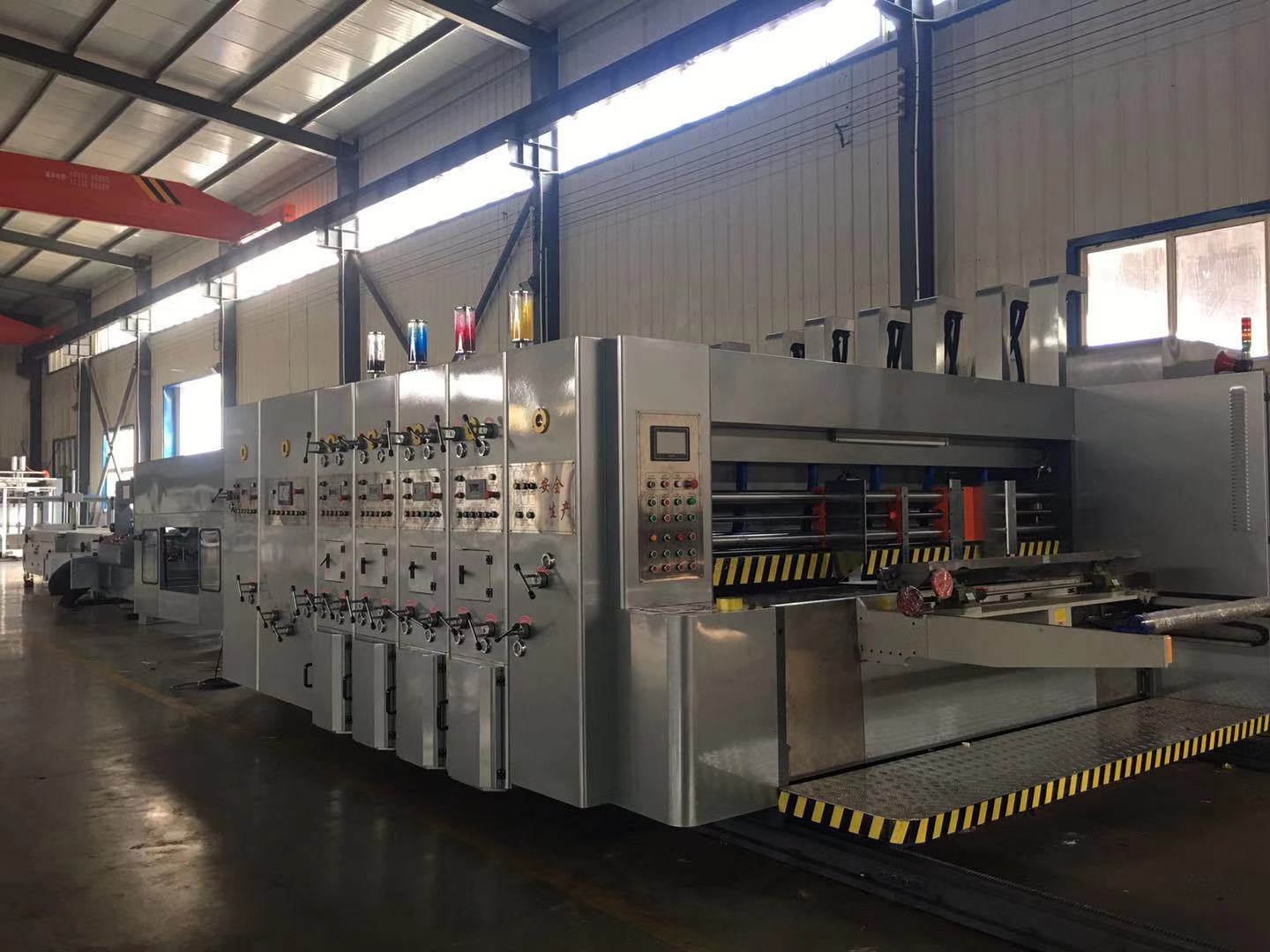

Automatic Case Maker Flexo Printer Slotter With Folder Gluer
Bundling Line
Description:
This line is consist with 3 parts, flexo printer slotter, folder
gluer and bundling unit. The feeding system is lead edge feeding
with vacuum suction, the machine is adjusted by PLC touch screen
control, easy and convenient to operate. Feeding from corrugated
paperboard and out is boxes, it has a high working effiency and
save the labor. Generally we make 1-4 colors, but we can produce as
you want, also you can choose printer with folder gluer togther,
not all three parts. It is a good machine for box making factory.
Machine Features:
1. This machine is fully automatic, computer control system, you
and set the measure and the machine will adjusted autmatically.
2. The thickness of the steel wall is 50mm, the gears are made from
high frequency quenching and polishing-gear, thickness can be 60 or
80mm.
3. All thr rollers are hard chrome plated in order to increase the
hardness.
4. The gears adopt shower type circular lubricating.
5. Automatically changes return zero and correct the plate
postition.
6. The side baffle plate of the feeding unit and slotting unit are
adjusted by PLC electrically.
7. It has the function of memory, change order quickly, saving
time.
8.All the electric parts of this machine is famous brand.
Main specification:
| Model | GYK1200x2600 | GYK1200x2800 |
| Width of inside machine | 2600 | 2800 |
| Design speed | 200 pcs/min | 200 pcs/min |
| Max feeding size | 1200x2400 | 1200x2600 |
| Min feeding size | 350x700 | 350x700 |
| Skip feeding size | 1600x2400 | 1600x2600 |
| Max printing size | 1200x2200 | 1200x2400 |
| Printing precision | ±0.5mm | ±0.5mm |
| Thickness of board | 3-11mm | 3-11mm |
| Min slotting space | 190x50x190x50mm | 190x50x190x50mm |
| Max depth of slot | 300 | 300 |
| We also have other models, can make as you request. |
