    Corrugated Box Platform Die Cutting Machine , Board Cutter Machine

    Ask Lasest Price
    Brand Name : zhaoli
    Model Number : ZL1400
    Certification : CE
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 50set per month
    Delivery Time : 15 days after get diposit
    • Product Details
    • Company Profile

    Corrugated Box Platform Die Cutting Machine , Board Cutter Machine

    Corrugated Box Platform Die Cutting Machine/Die Cutter Machinery


    Introduction

    MJRJ-4 Series Creasing and Die cutting machine is the special equipment for die cutting and creasing many different kind sheet shape materials. Such as hard paperboard, corrugated paperboard, plastic, leather and so on. It is widely used in printing, packing and decorating industry. Our company’s product with its high-quality and competitive price are popular by our customers all over the world.


    Characteristics

    1. Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.

    2. Flywheel is with big moment of force and large pressure.

    3. High strength due to one piece casting by using top-ranking material for machine body.

    4. Single plate electromagnetic clutch is sensitive and reliable.

    5. Have functions of single cutting and creasing, continuous cutting and creasing and time-lapse opening, time-lapse range is adjustable.

    6. Operation height is reasonable designed, the opening corner of the moving-bed is big.

    7. Focus lubrication system makes the machine can lubricate very well, and reduce the abrasion.

    8. Safety system is reliable.


    Technological Parameters

    Model130014001500
    Max. die-cutting and creasing area1300*920mm1400*1000mm1500*1050mm
    Working speed18±2 strokes /min17±2 strokes/min17±2 strokes /min
    Max. Rule length<40m<45m<45m
    Power5.5KW7.5KW7.5KW
    Weight6000KG7200KG8000KG
    Machine Size (L*W*H)2000*2140*2000mm2010*2400*1930mm

    2010*2400*1930mm

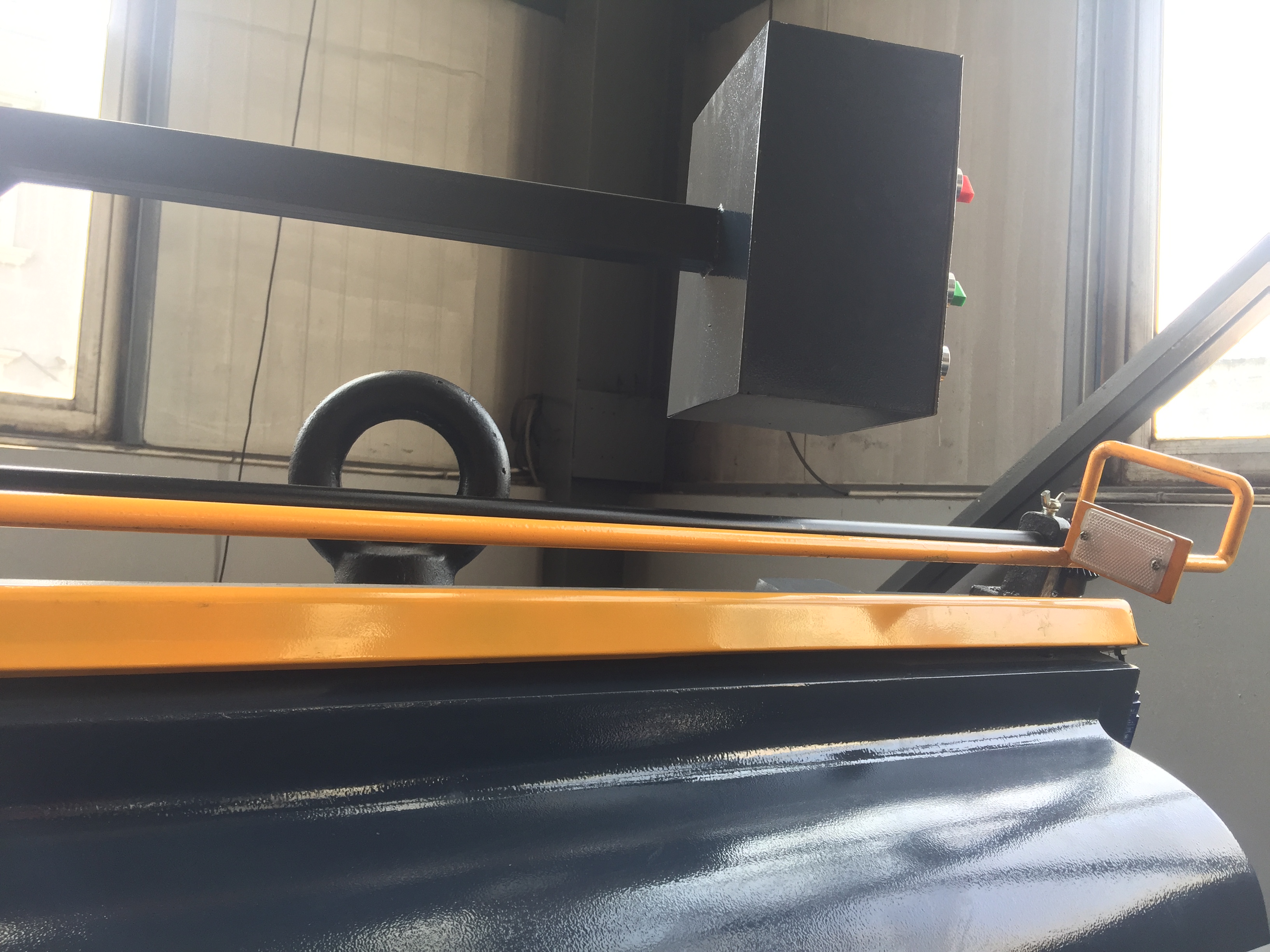

    Four safety, when you touch this four place, the machine will stop, it is very safe.
