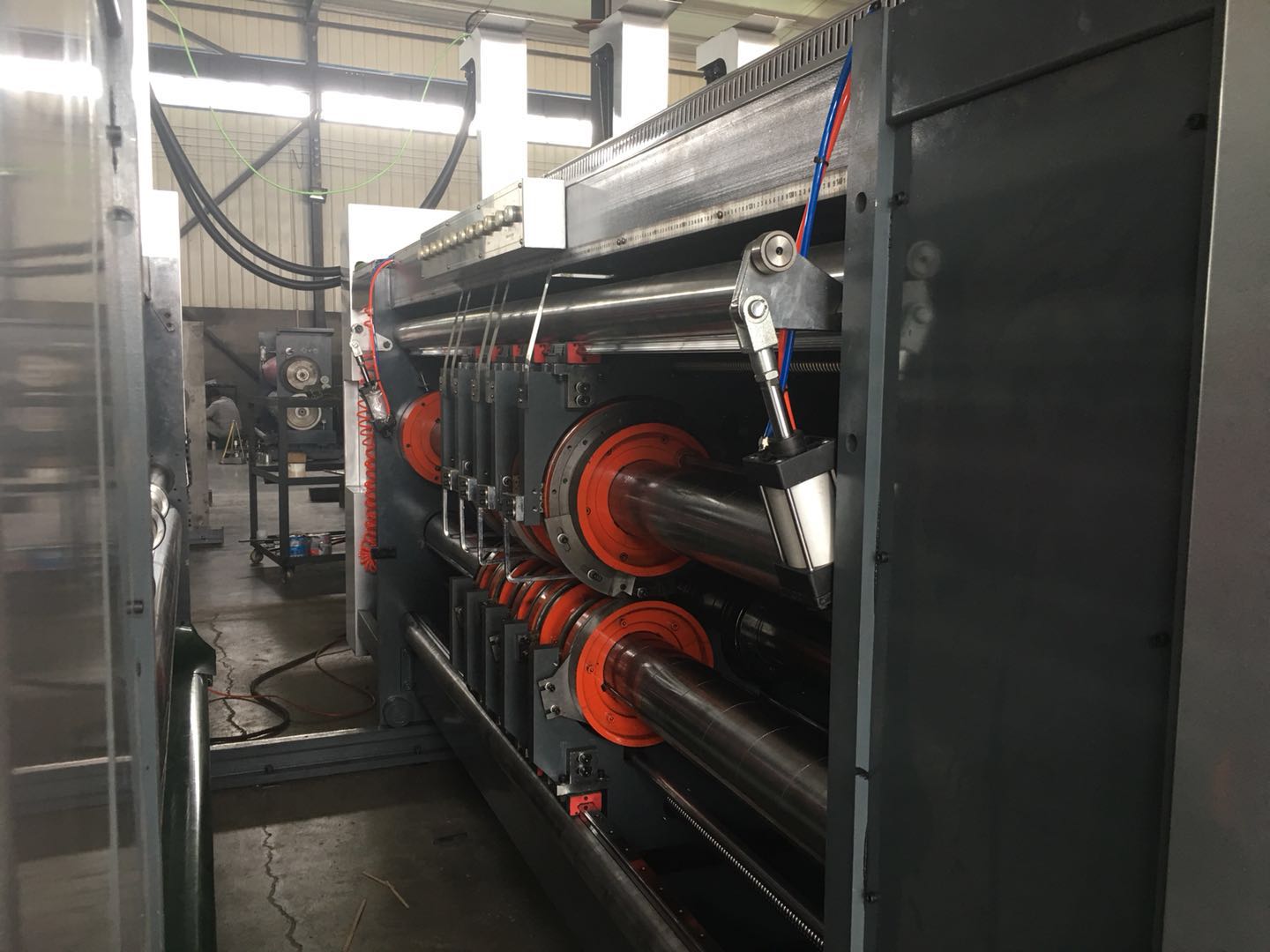

full computer 4 colors printer slotter with beautiful printing effect for carton boxes

1. Transmission gear

1. 40Cr forging of high quality alloy steel, through tempering, high frequency quenching, grinding teeth and other processes, to improve the service life of the gear.
2. Sixth level precision, smooth operation, low noise, hardness HRC55-60, long life and small wear, which can guarantee the accuracy of printing color sets unchanged for a long time.

1. Wallboard: the material is high quality cast iron HT250 with a wall thickness of 50mm. It is made and processed by a large processing center with high precision.

Lead Edge Feeder :

1. The positions of the left and right baffles are electrically regulated by the screw rod, which is convenient and quick to adjust. The position of upper and lower clearance of front baffle is manually adjusted separately.
2. With the skip feeding function , choose the skip feeding function according to the needs to ensure the processing of large size board. Paper lifting and paper dropping adopt cylinder to push the action quickly and save effort.
3. The host machine adopts frequency conversion control the machine start , runs smoothly, and can save 30% of energy.
4. Equipped the interlock control switch which is connected with die cutting unit, to realize urgent stop, stop feeding or resume feeding, forward and reverse jog, phase jog of each unit, and more humanized operation.

printer unit :

1. Steel plate material, surface grinding, hard chrome plating.
2. Balance correction, smooth operation.
3. Ratchet wheel fixed roller which install the printing plate.
4. The whole format plate groove, suitable for 9mm hanging version shall apply.
5. Load and unload the printing plate, make positive and negative turns by electric foot switch.
6. Printing roller transverse manual adjustment, the range of 2-5mm.

Die cutter unit :

1. Automatic grinding mechanism of rubber roller, repair and polish the worn rubber mat multi times. The reuse rate of rubber mat has been greatly increased. The alarm lamp keeps flashing when the rubber roll is repaired.
2. Cleaning system: the front and back embossing shaft is pressed to the belt through the deceleration motor, and the waste of paper is removed completely, so that the machine will not be affected by the accumulation of the waste paper. The work efficiency is greatly improved.

we can make the printing machine according to customer's requirements , including printer colors , adjustment types , special types of carton producing , etc.

welcome to contact us for details !

Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type company which consisted of import & export sales department and two machine manufacture factories . Specializing in the production of two series of products, the one type of main products are " carton forming slotting machine, carton printing slotting machine, automatic multi knives slitting machine, automatic partition board assembler machine, automatic partition board machine" etc. for small carton packing ; the other type of main products are like the tranditional carton machines , like flexo printer slotter die cutter machine , folder gluer mahine , laminator machine , corrugated cardboard production line etc. At present, our products not only sale in the domestic but also sale to Europe Union, Middle East, South-east Asia, Russia, South Africa and other countries and areas.

Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from research and development for the corrugated carton printing machine to current " carton specializing machines serious and automatic partition board assembler machine serious " , it gives full play to every technologies on the advancement and manufacturing on the reliability, thus we can keep the leading position in the field of corrugated carton making machinery. All of our machines adopt advanced laser cutting technique in processing center to finish every structure units, our machines can use our unique technology to realize even if the cartons are difficult to make.

Our company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers with new innovation, development and perfect after-sale service.
