    Hydraulic Type Mill Roll Stand For Coorugated Paper / Carton Packing Machine

    Ask Lasest Price
    Brand Name : Zhaoli Brand
    Model Number : 1800 mm
    Certification : CE Certificate
    Price : USD 7000 - 19000 Per set
    Payment Terms : L/C, T/T
    Supply Ability : 30 Set Per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Hydraulic Type Mill Roll Stand For Coorugated Paper / Carton Packing Machine


    Hydraulic Type Mill Roll Stand For Coorugated Paper / Carton Packing Machine


    ※technical parameters:

    1. Backstands action: full hydraulic operation 2, the range of clamping paper:MAX1800mm MIN800mm

    3, clamping diameters:MAX¢1500mm MIN¢350mm 4, Unilateral maximum load: the MAX.5000Kg

    5, Paper holder spindle diameter:¢270mm 6, Working air pressure(Mpa):0.4---0.8Mpa

    7, working power:voltage 380V frequency 50Hz

    ※Hydraulic system parameters:

    1, working pressure (Mpa):16---18Mpa 2, hydraulic cylinder working range(lifting):¢125×440mm

    3, hydraulic cylinder working range(clamping /Traverse):¢80×1300mm

    4, hydraulic station motor power:4KW short (S2)working system rated voltage and frequency:380V 50Hz

    5, hydraulic station solenoid valve working voltage:220V 50 Hz

    ※Mainly purchased parts, raw materials and origin:

    Name of main partsBrands or place of originmaterial
    Main shaftDay steel productionThick-walled seamless steel pipe diameter of 270mm
    Swing armProduction by ownResin sand gray ironHT250
    wallboardJigang prductionQ235AWelding parts
    bearingHRB,ZWZ,LYC
    Inflatable jam headZhejiang xusheng3,4inch shared
    Main electrical applianceFrance Schneider
    Pneumatic componentsJapan SMC or taiwan Airtac
    Hydraulic stationShandong zaozhuangTaiwan oil pump solenoid valve
    Six brake pumpsChangzhou Sincerity

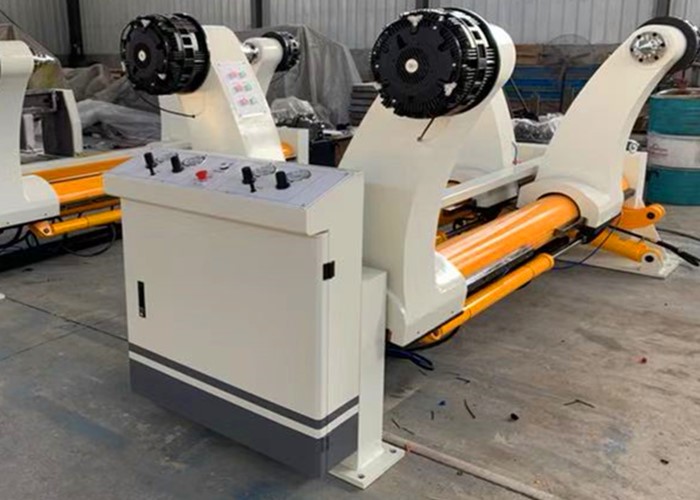

    3 Machine main picture
