Brand Name : | ZHAOLI |
Model Number : | ML-1100 |
Certification : | CE certificate |
Price : | USD7000/set |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 10 set one month |
Delivery Time : | 20 days after get advance payment |

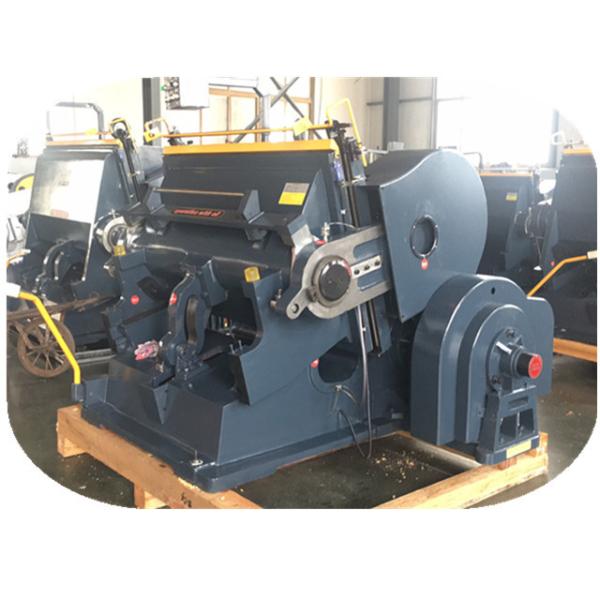

Die cutting punching machine ML-1100
Our ML-1100 Creasing and Die Cutting Machine is widely used in post-press industry, this platen converting paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different product with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
Specification | |
Model | ML-1100 |
Inside chase size | 1100×800mm |
Max. die cutting size | 1100×800mm |
Speed | 23±2sheets/min |
Max. rule length | ≤30m |
Rating Power | 5.5kw |
Gross machine weight | 4,500kg |
Overall machine dimension | 2040x1910x1750mm |
- Machine frame is of highgrade iron
- Helical drive gears for added strength and run smoothly and
quietly
- Automatic oil central lubrication
- Double micrometer impression adjustment
- Electromagnetic clutch
- counter
- Impresssion throw off to avoid print wast when wrong placed
- Reliable safety devices
- Platen edge safety
- Covers on flywheels
![]() |
