Automatic Carton Box Flexo Printer Slotter Machine / Corrugated
Carton Making Machine
1 Machine main features
1) Four rows wheels type lead edge feeding system , easy operation
, high precision.
2) The lead edge wheels adopt Maxdura brand from Taiwan , durable
Wear Resistant . the clearance of front baffles is adjusted
manually .
3) 7.5kw fan , air suction auxiliary paper feeding, according to
the bending degree of the board, adjustable air volume to ensure
smooth paper feeding. Variable frequency control the air volume .
4) The positions of the left and right baffles are electrically
regulated by the screw rod, which is convenient and quick to
adjust.
5) With the skip feeding function , choose the skip feeding
function according to the needs to ensure the processing of large
size board. Paper lifting and paper dropping adopt cylinder to push
the action quickly and save effort.
6) The host machine adopts frequency conversion control the machine
start , runs smoothly, and can save 30% of energy.
7) Equipped the interlock control switch which is connected with
die cutting unit, to realize urgent stop, stop feeding or resume
feeding, forward and reverse jog, phase jog of each unit, and more
humanized operation.
8) The back paper frame can electric control the position movement
, speed up the adjustment .
9) Dust removal device : equipped with high quality brush , it can
remove impurities on the printing surface of cardboard in large
quantities and improve the printing quality.
10) Manually adjust the back baffle position .
11) Paper feeding counter, set and display production quantity.
2 Machine main parameter
| Machine Max speed | 120pcs /min |
| Max feeder size | 3200 X 1600 mm |
| Max print size | 3000 X 1600 mm |
| Machine wallboard thickness | 40 mm |
| Print plate thickness | 7.2 mm |

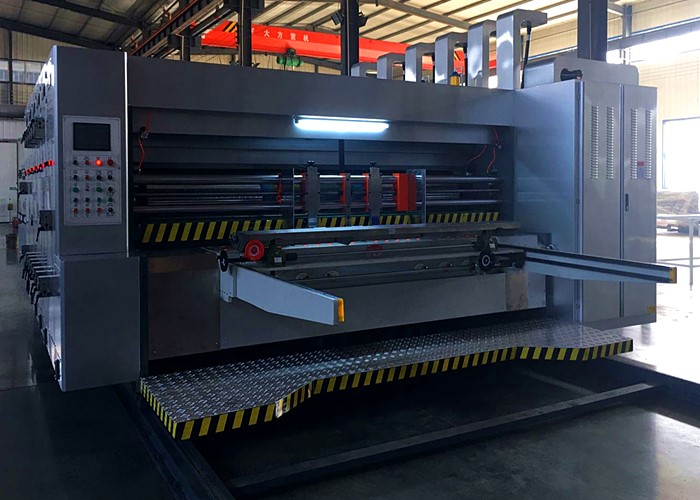

3 Machine main pictures
